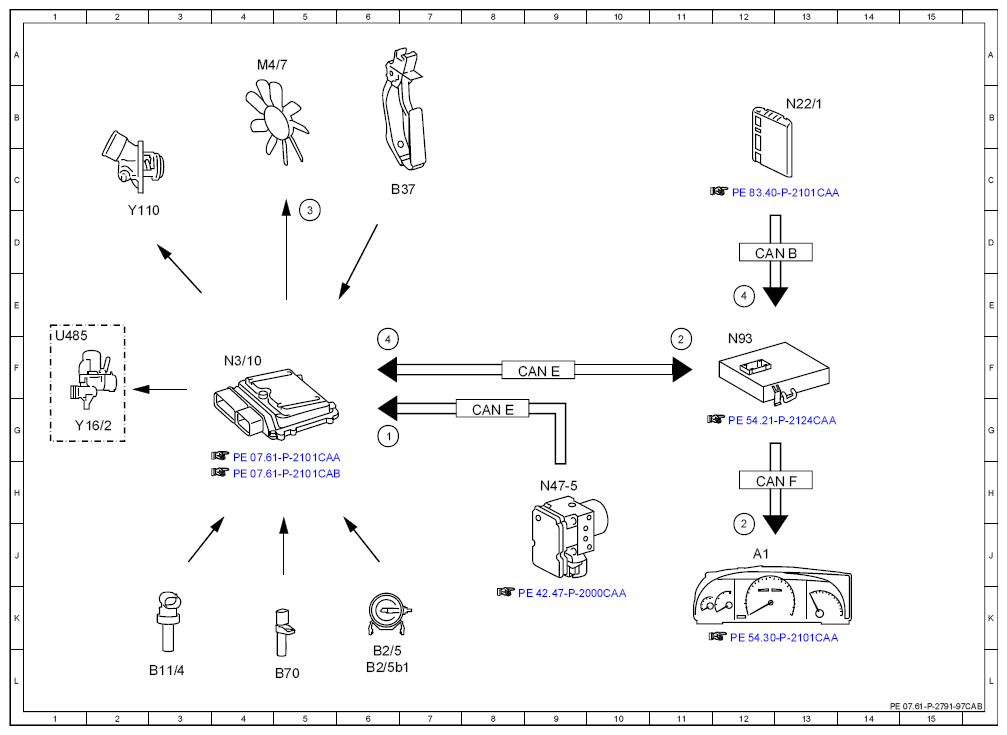

| Code: |
Designation: |
Position: |
| 1 |
Vehicle speed, signal |
6G |
| 2 |
Instrument cluster, message |
11F |
| 2 |
Instrument cluster, message |
12J |
| 3 |
Fan motor, specified RPM request |
5D |
| 4 |
Air conditioning, status |
6F |
| 4 |
Air conditioning, status |
12E |
| A1 |
Instrument cluster |
12J |
| B11/4 |
Coolant temperature sensor |
3L |
| B2/5 |
Hot film mass air flow sensor |
6L |
| B2/5b1 |
Intake air temperature sensor |
6L |
| B37 |
Accelerator pedal sensor |
7C |
| B70 |
Crankshaft Hall sensor |
5K |
| CAN B |
Interior CAN |
13D |
| CAN E |
Chassis CAN |
9F |
| CAN E |
Chassis CAN |
8G |
| CAN F |
Central CAN |
12H |
| M4/7 |
Engine and AC electric suction fan with integrated control |
5B |
| N22/1 |
AAC [KLA] control unit |
12B |
| N3/10 |
ME-SFI [ME] control unit |
5G |
| N47-5 |
ESP control unit |
9J |
| N93 |
Central gateway control unit |
12F |
| U485 |
Not valid for M273 ME |
2F |
| Y110 |
Three-disk thermostat valve |
2C |
| Y16/2 |
Heating system shutoff valve |
2G |
