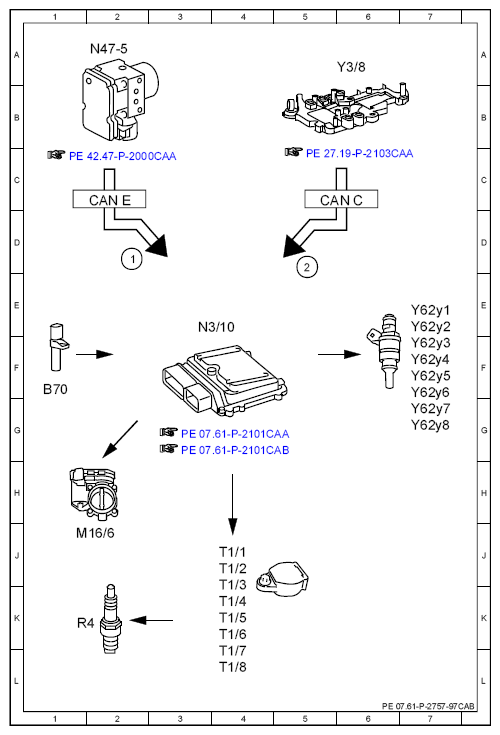

| Code: |
Designation: |
Position: |
| 1 |
Vehicle speed, signal |
2D |
| 2 |
Selector lever position, status |
5D |
| B70 |
Crankshaft Hall sensor |
1F |
| CAN C |
Drive train CAN |
5C |
| CAN E |
Chassis CAN |
2C |
| M16/6 |
Throttle valve actuator |
2H |
| N3/10 |
ME-SFI [ME] control unit |
4F |
| N47-5 |
ESP control unit |
2B |
| R4 |
Spark plugs |
2K |
| T1/1 |
Cylinder 1 ignition coil |
4J |
| T1/2 |
Cylinder 2 ignition coil |
4J |
| T1/3 |
Cylinder 3 ignition coil |
4J |
| T1/4 |
Cylinder 4 ignition coil |
4K |
| T1/5 |
Cylinder 5 ignition coil |
4K |
| T1/6 |
Cylinder 6 ignition coil |
4K |
| T1/7 |
Cylinder 7 ignition coil |
4L |
| T1/8 |
Cylinder 8 ignition coil |
4L |
| Y3/8 |
Electric control unit (VGS) |
6B |
| Y62y1 |
Cylinder 1 fuel injection valve |
7E |
| Y62y2 |
Cylinder 2 fuel injection valve |
7E |
| Y62y3 |
Cylinder 3 fuel injection valve |
7F |
| Y62y4 |
Cylinder 4 fuel injection valve |
7F |
| Y62y5 |
Cylinder 5 fuel injection valve |
7F |
| Y62y6 |
Cylinder 6 fuel injection valve |
7F |
| Y62y7 |
Cylinder 7 fuel injection valve |
7G |
| Y62y8 |
Cylinder 8 fuel injection valve |
7G |
