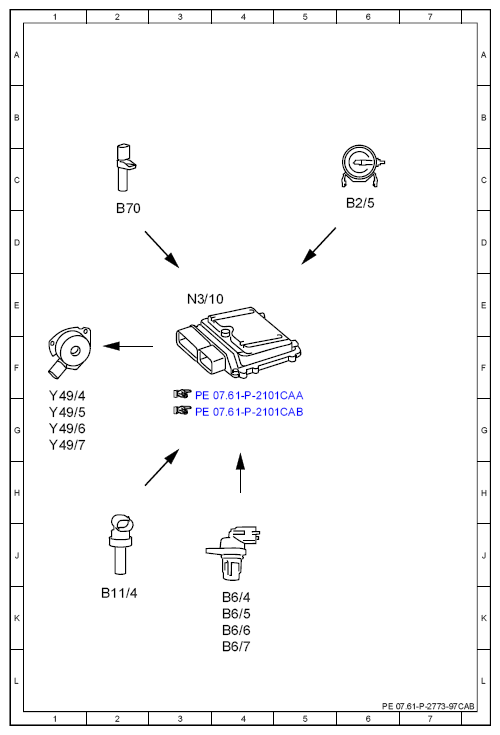

Electrical function diagram for camshaft adjustment ME - PE07.61-P-2773-97CAB
| Code: | Designation: | Position: |
| B11/4 | Coolant temperature sensor | 2J |
| B2/5 | Hot film mass air flow sensor | 6C |
| B6/4 | Left intake camshaft Hall sensor | 4K |
| B6/5 | Right intake camshaft Hall sensor | 4K |
| B6/6 | Left exhaust camshaft Hall sensor | 4K |
| B6/7 | Right exhaust camshaft Hall sensor | 4K |
| B70 | Crankshaft Hall sensor | 2C |
| N3/10 | ME-SFI [ME] control unit | 4F |
| Y49/4 | Left intake camshaft solenoid | 1F |
| Y49/5 | Right intake camshaft solenoid | 1G |
| Y49/6 | Left exhaust camshaft solenoid | 1G |
| Y49/7 | Right exhaust camshaft solenoid | 1G |
