Transmission overload protection, function - GF07.61-P-4026V
ENGINES 273.961 in MODEL 216, 221 with TRANSMISSION 722.9 up to Model Year 08 /modification year 07

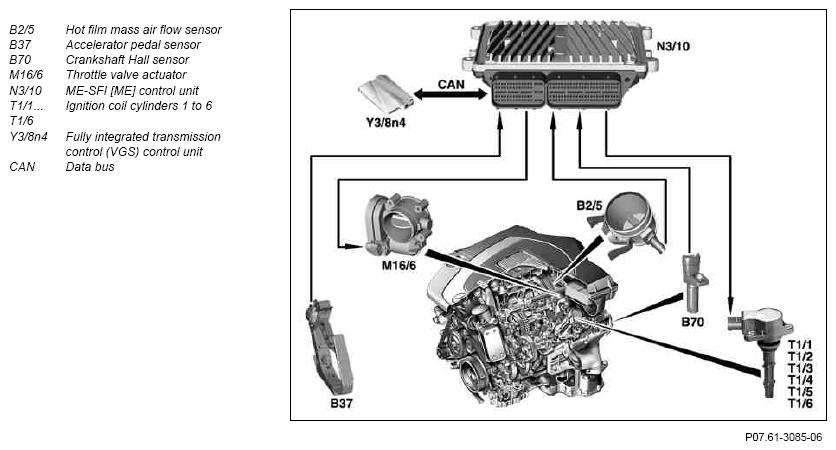

Shown on Engine 272.963 in Model 171
This function protects the shift elements of the automatic transmission from thermal overload during load changes in the upper engine speed range.
Through brief retardation of the ignition and closing of the throttle valve during shift operations, the engine torque is reduced. The ME-SFI [ME] control unit is supplied with a signal for this purpose by the transmission control unit via the CAN data bus.
| ME-SFI [ME] control unit, component description | GF07.61-P-6000V |
| Component description for the crankshaft Hall sensor | GF07.04-P-6220V |
| Throttle valve actuator, component description | GF30.20-P-2020V |
| Accelerator pedal sensor, component description | GF30.20-P-2010V |
| ME-SFI ignition system, function | GF15.12-P-0001V |
