The ME-SFI post-start enrichment function - GF07.61-P-3011V

ENGINE 273.961 in MODEL 216, 221 up to Model Year 8

Shown on engine 272.963 in model 171

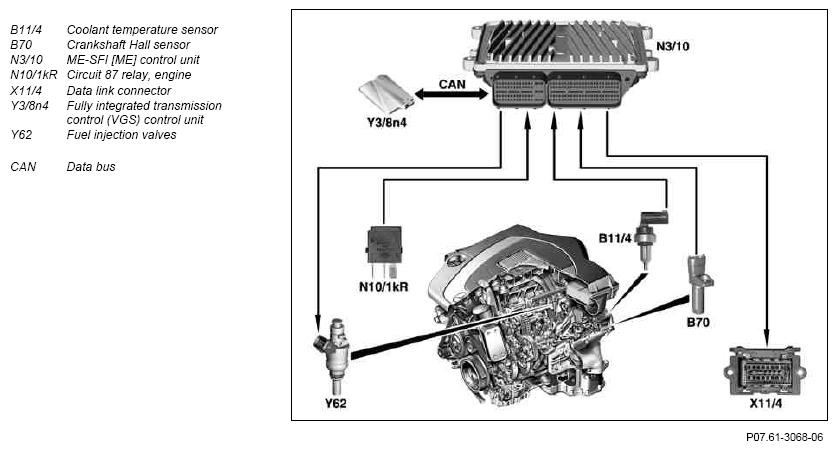

Fig 1: ME-SFI Post-Start Enrichment Function Diagram

Courtesy of MERCEDES-BENZ USA

After a cold start the fuel-air mixture is enriched for a short time. The fuel which precipitates on the cylinder walls and the intake manifold is compensated for by this enrichment and the engine runs smoothly. Torque converter protection of automatic transmission (e.g. 1400 RPM with no gear engaged (automatic transmission) at +30°C coolant temperature for about 30 s).

The post-start enrichment is dependent on:

• Coolant temperature at start
• Combustion cycles after start
• Correction programming with STAR DIAGNOSIS

Fig 2: Post-Start Enrichment Rate And Time Graph

Courtesy of MERCEDES-BENZ USA
