The ME-SFI limiting maximum vehicle speed function - GF07.61-P-3019V
ENGINE 273.961 in MODEL 216, 221 up to Model Year 8

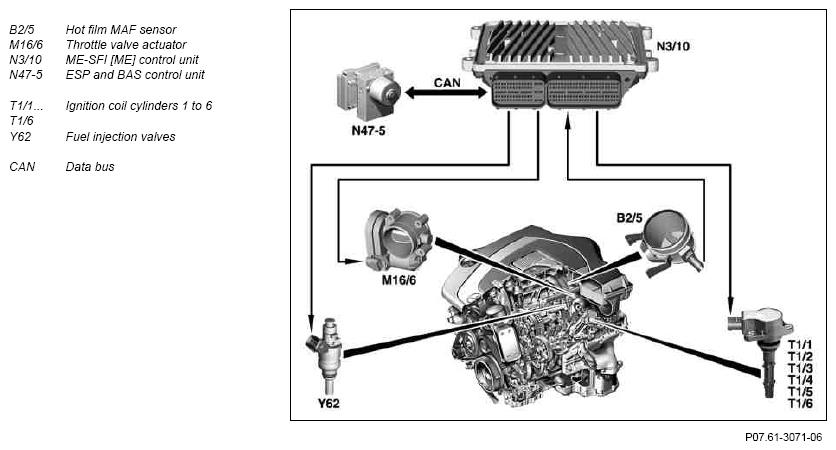

Shown on engine 272.963 in model 171
In order to limit maximum vehicle speed on vehicles with a corresponding engine power output, the throttle valve is closed and the quantity of fuel injected is reduced accordingly once a speed of 250 km/h is reached. In addition, the ignition angle is adjusted to "Late".
These measures ensure simple maximum speed limitation by reduction of the torque.
| Component description for the ME-SFI [ME] control unit | GF07.61-P-6000V |
| Component description for the throttle valve actuator | GF30.20-P-2020V |
| Component description for the hot film MAF sensor | GF07.07-P-6000V |
| Component description for the fuel injection valves | GF07.03-P-6010V |
| Component description for an ignition coil | GF15.10-P-2100V |
