Motor electronics (ME-SFI) gasoline injection and ignition system, block diagram - GF07.61-P-0001-13MLS

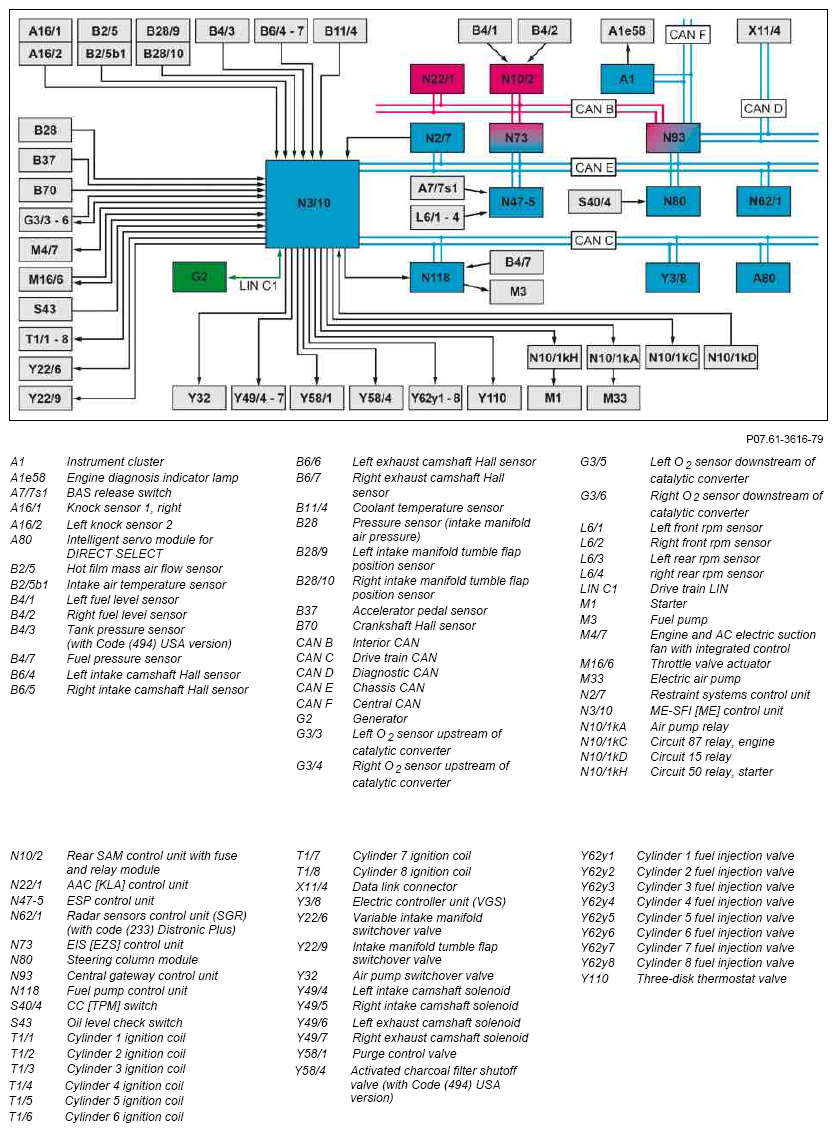

Fig 1: Gasoline Injection Engine 273 And Ignition System Block Diagram
G07633987Courtesy of MERCEDES-BENZ USA
