(ME-SFI) motor electronics gasoline injection and ignition system, location of components on engine - GF07.61-P-0001-14MIS

Shown on engine 272

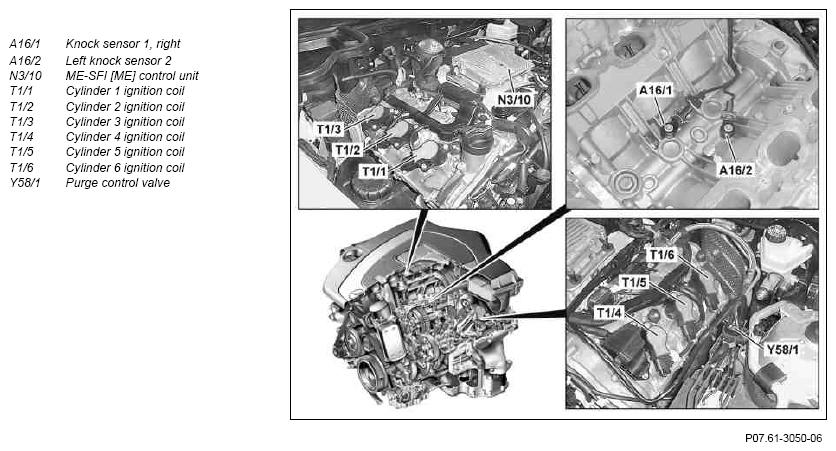

Fig 1: Gasoline Injection And Ignition System Components Location (1 Of 4)

Courtesy of MERCEDES-BENZ USA

Shown on engine 272

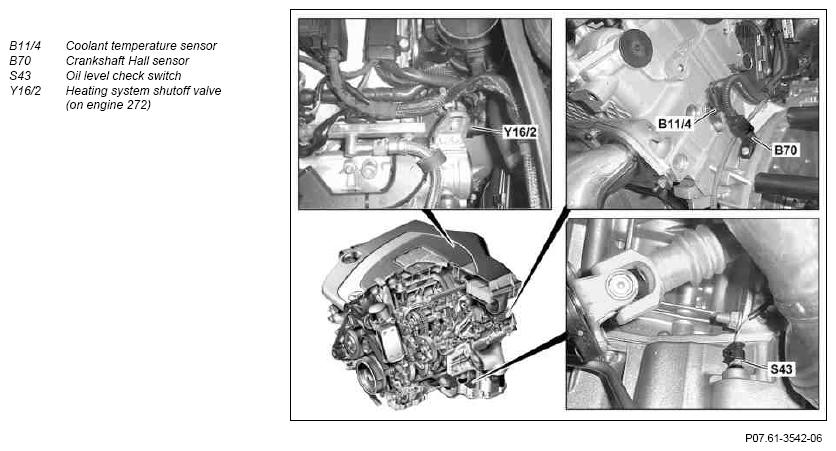

Fig 2: Gasoline Injection And Ignition System Components Location (2 Of 4)

Courtesy of MERCEDES-BENZ USA

Shown on engine 272

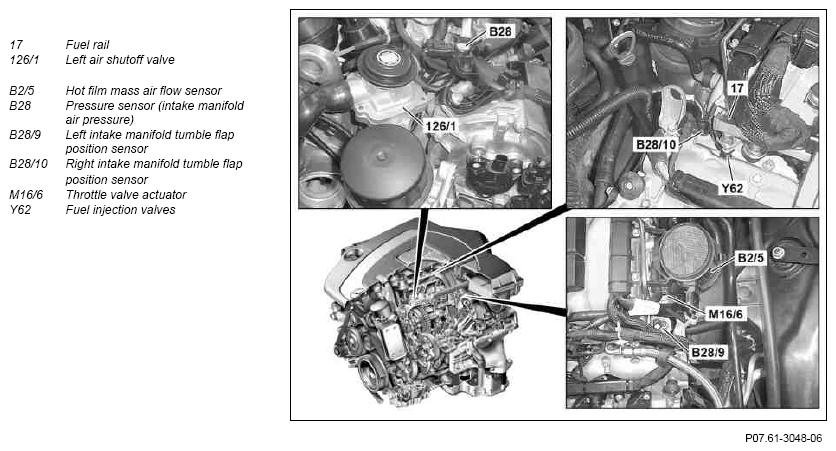

Fig 3: Gasoline Injection And Ignition System Components Location (3 Of 4)

Courtesy of MERCEDES-BENZ USA

Shown on engine 272

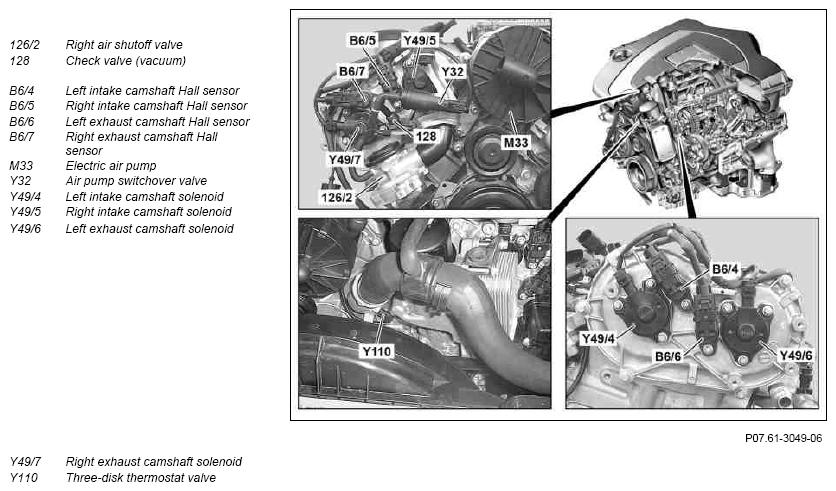

Fig 4: Gasoline Injection And Ignition System Components Location (4 Of 4)

Courtesy of MERCEDES-BENZ USA

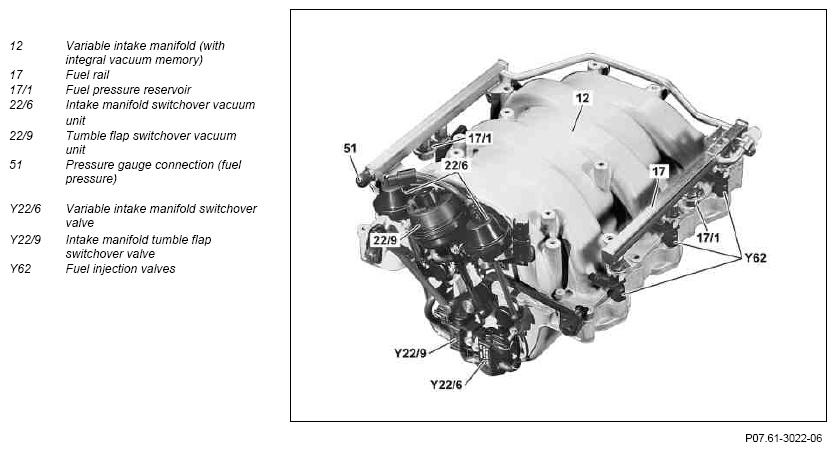

Variable intake manifold for engine 272

Fig 5: Identifying Variable Intake Manifold Components Location (Engine 272)

Courtesy of MERCEDES-BENZ USA

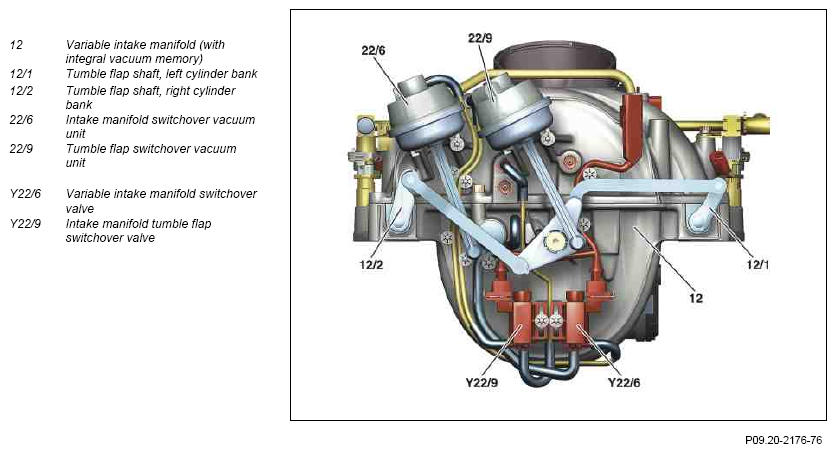

Variable intake manifold for engine 273

Fig 6: Identifying Variable Intake Manifold Components Location (Engine 273)

Courtesy of MERCEDES-BENZ USA
