(ME-SFI) motor electronics for a fuel injection and ignition system, location of components on vehicle - GF07.61-P-0001-15MIS

Engine compartment shown on model 221 with engine 272

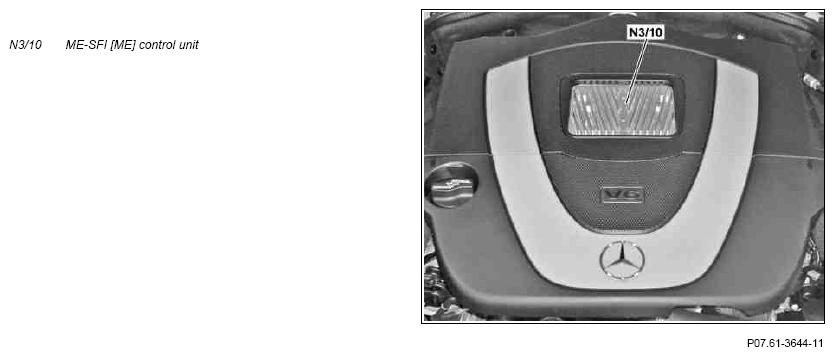

Fig 1: Identifying ME-SFI [ME] Control Unit

Courtesy of MERCEDES-BENZ USA

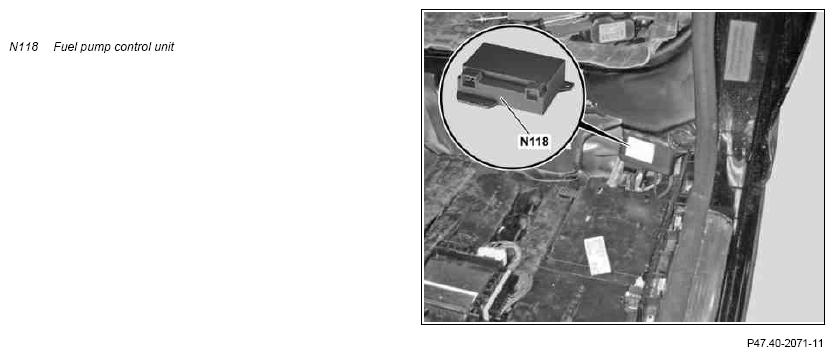

LH rear compartment shown on model 221

Fig 2: Identifying Fuel Pump Control Unit

Courtesy of MERCEDES-BENZ USA

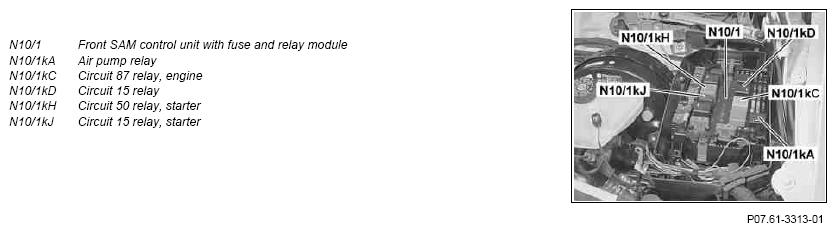

View of the engine compartment at the rear left

Fig 3: Identifying Front SAM Control Unit With Fuse And Relay Module

Courtesy of MERCEDES-BENZ USA

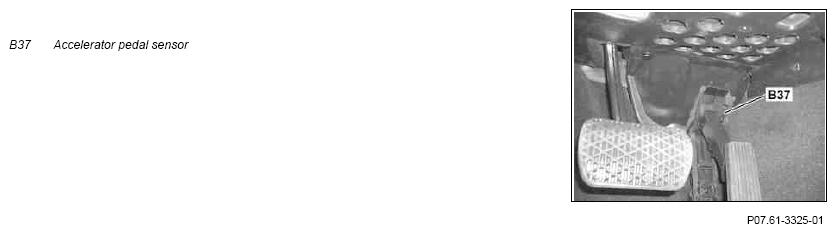

View of driver footwell

Fig 4: Identifying Accelerator Pedal Sensor

Courtesy of MERCEDES-BENZ USA

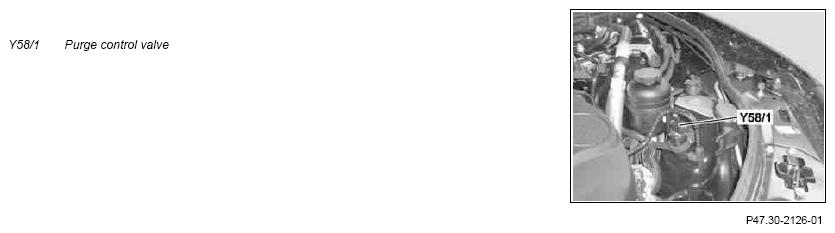

View of engine compartment from left front

Fig 5: Identifying Purge Control Valve

Courtesy of MERCEDES-BENZ USA

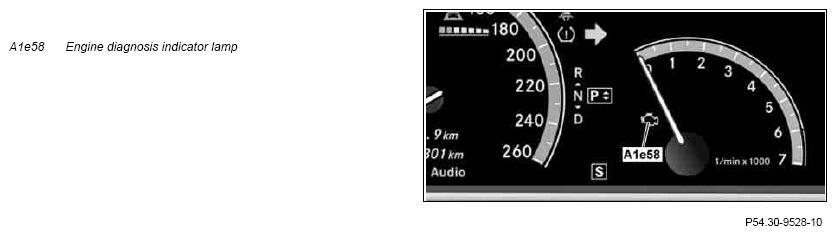

View of instrument cluster (A1)

Fig 6: Identifying Engine Diagnosis Indicator Lamp

Courtesy of MERCEDES-BENZ USA

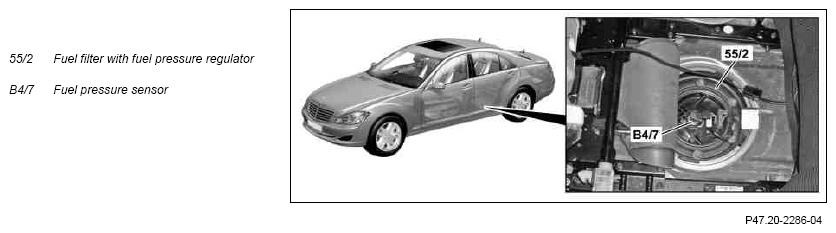

View of the left rear compartment (rear bench seat removed)

Fig 7: Identifying Fuel Filter With Fuel Pressure Regulator And Fuel Pressure Sensor

Courtesy of MERCEDES-BENZ USA

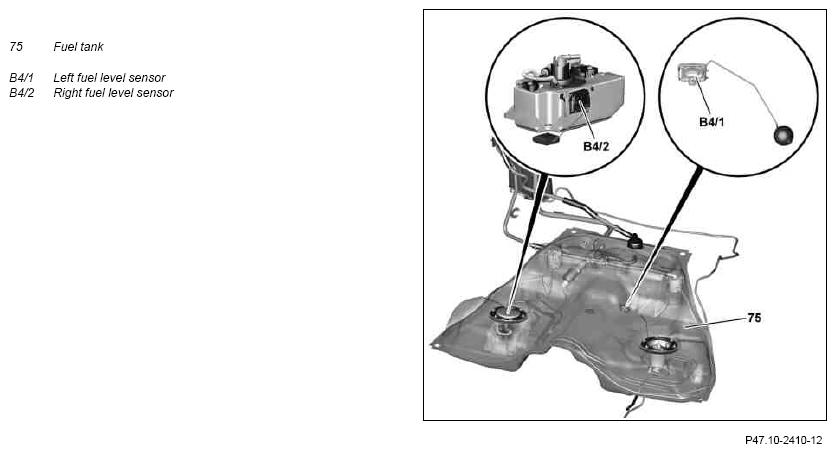

View of fuel tank from the left front

Fig 8: Identifying Fuel Tank And Left/Right Fuel Level Sensor

Courtesy of MERCEDES-BENZ USA

View of fuel tank from the left front

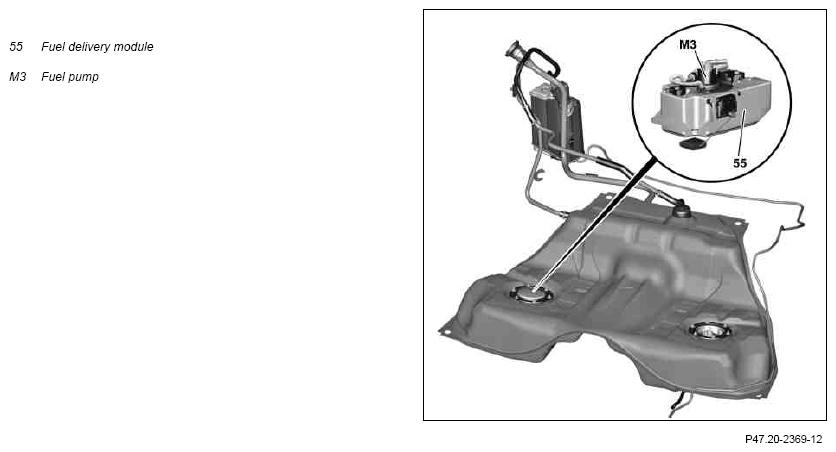

Fig 9: Identifying Fuel Delivery Module And Fuel Pump

Courtesy of MERCEDES-BENZ USA

View of fuel tank from the front left (with code (494) USA version)

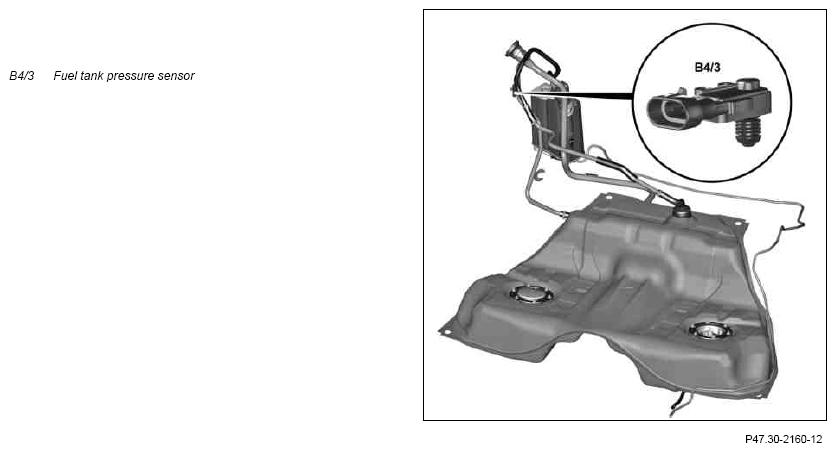

Fig 10: Identifying Fuel Tank Pressure Sensor

Courtesy of MERCEDES-BENZ USA

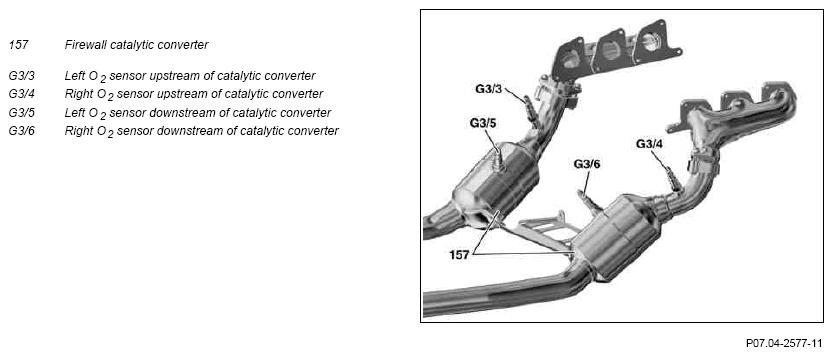

Front exhaust system shown on engine 272

Fig 11: Identifying Firewall Catalytic Converter And Left/Right O2 Sensors Upstream And Downstream

Courtesy of MERCEDES-BENZ USA
