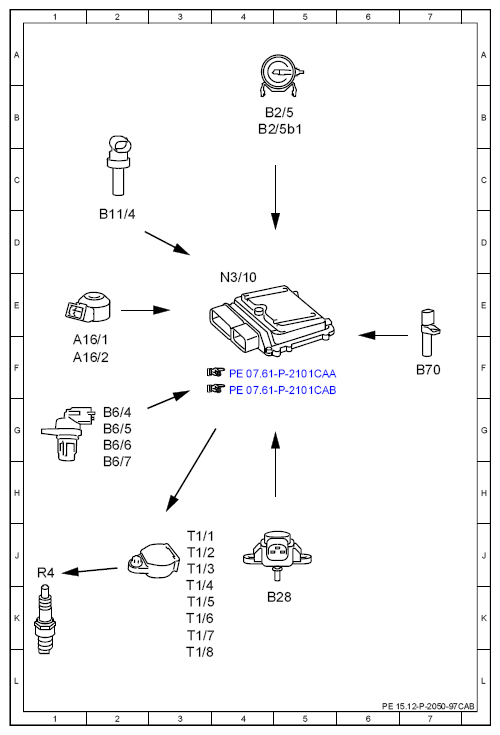

| A16/1 |
Right knock sensor 1 |
2E |
| A16/2 |
Left knock sensor 2 |
2E |
| B11/4 |
Coolant temperature sensor |
2C |
| B2/5 |
Hot film mass air flow sensor |
5A |
| B2/5b1 |
Intake air temperature sensor |
5A |
| B28 |
Pressure sensor |
5J |
| B6/4 |
Left intake camshaft Hall sensor |
1G |
| B6/5 |
Right intake camshaft Hall sensor |
1G |
| B6/6 |
Left exhaust camshaft Hall sensor |
1G |
| B6/7 |
Right exhaust camshaft Hall sensor |
1G |
| B70 |
Crankshaft Hall sensor |
7E |
| N3/10 |
ME-SFI [ME] control unit |
4E |
| R4 |
Spark plugs |
1K |
| T1/1 |
Cylinder 1 ignition coil |
3J |
| T1/2 |
Cylinder 2 ignition coil |
3J |
| T1/3 |
Cylinder 3 ignition coil |
3J |
| T1/4 |
Cylinder 4 ignition coil |
3J |
| T1/5 |
Cylinder 5 ignition coil |
3J |
| T1/6 |
Cylinder 6 ignition coil |
3J |
| T1/7 |
Cylinder 7 ignition coil |
3J |
| T1/8 |
Cylinder 8 ignition coil |
3J |
