Component description for spark plugs - GF15.10-P-2000V
ENGINE 272.920 in MODEL 203 up to Model Year 8
ENGINE 272.922 in MODEL 211
ENGINE 272.940 in MODEL 203 up to Model Year 8
ENGINE 272.941 in MODEL 203 up to Model Year 8
ENGINE 272.942 in MODEL 171 up to Model Year 8
ENGINE 272.943 in MODEL 211, 219
ENGINE 272.944 in MODEL 211
ENGINE 272.945 in MODEL 251 up to Model Year 8
ENGINE 272.946 in MODEL 221 up to Model Year 8
ENGINE 272.960 in MODEL 203 up to Model Year 8
ENGINE 272.963 in MODEL 171 up to Model Year 8
ENGINE 272.964 in MODEL 211, 219
ENGINE 272.965 in MODEL 221 up to Model Year 8
ENGINE 272.966 in MODEL 230 up to Model Year 8
ENGINE 272.967 in MODEL 164, 251 up to Model Year 8
ENGINE 272.970 in MODEL 203 up to Model Year 8
ENGINE 272.972 in MODEL 211
ENGINE 272.975 in MODEL 221 up to Model Year 8
ENGINE 273.922 in MODEL 221 up to Model Year 8
ENGINE 273.923 in MODEL 164 up to Model Year 8
ENGINE 273.924 in MODEL 221 up to Model Year 8
ENGINE 273.960 in MODEL 211, 219
ENGINE 273.961 in MODEL 216, 221 up to Model Year 8
ENGINE 273.962 in MODEL 211
ENGINE 273.963 in MODEL 164, 251 up to Model Year 8
ENGINE 273.965 in MODEL 230 up to Model Year 8
ENGINE 273.967 in MODEL 209
ENGINE 273.968 in MODEL 221 up to Model Year 8
ENGINE 272.940 in MODEL 209
ENGINE 272.960 in MODEL 209

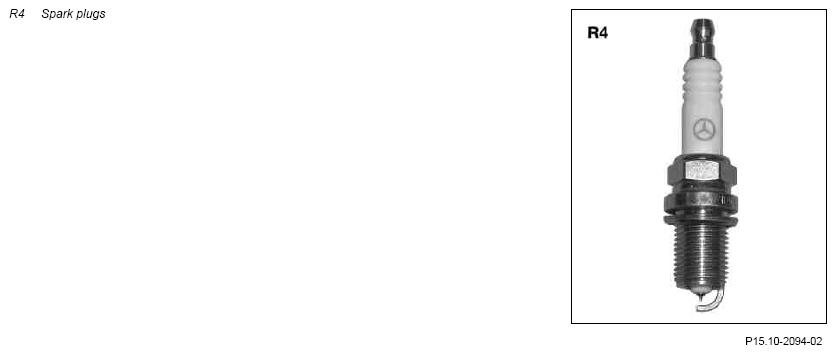

Location
In the cylinder head, each cylinder has a spark plug located in the center between the engine valves.
Task
The compressed fuel-air mixture is combusted by sparks between the electrodes according to the actuation from the ME control unit.
Design
In the manufacturer's specific type symbols, all the spark plug features are assigned (e. g. heat rating, shape of seating, thread, width across flats, electrode material, spark position).
Function
The ignition voltage flows from the ignition lines of the directly plugged in ignition coils to the spark plugs and causes arcing in the air gap between the central electrode and ground electrode.
Spark plug table, see IS, Group 15.
