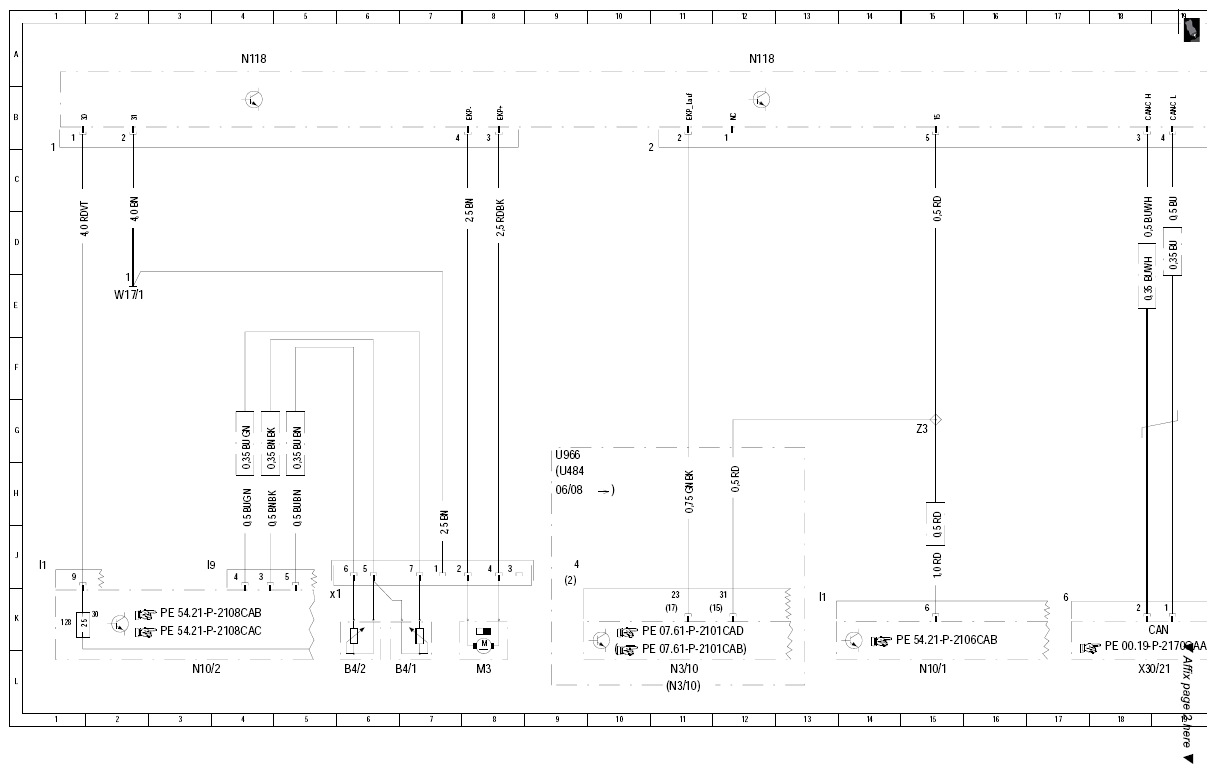

| A0 |
Explanation of color codes |
23 L |
| B4/1 |
Left fuel level sensor |
5 L |
| B4/1x1 |
Left tank half fuel level sensor connector |
5 K |
| B4/2 |
Right fuel level sensor |
6 L |
| B4/7 |
Fuel pressure sensor |
19 L |
| M3 |
Fuel pump (FP) |
7 L |
| N10/1 |
Front SAM control module with fuse and relay module |
14 L |
| N10/2 |
Rear SAM control module with fuse and relay module |
2 L |
| N118 |
Fuel pump control module |
4 A |
| N118 |
Fuel pump control module |
12 A |
| N118 |
Fuel pump control module |
19 A |
| N3/10 |
ME-SFI [ME] control module |
10 L |
| W17/1 |
Ground (left rear seat) |
2 E |
| X30/21 |
Drive train CAN voltage distributor connector |
17 L |
| Z3 |
Circuit 15 connector sleeve |
13 G |
