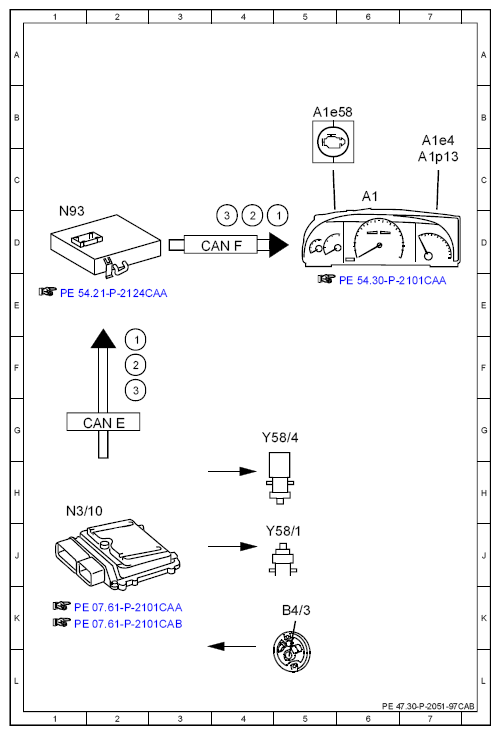

| 1 |
Engine diagnosis indicator lamp, actuation |
F2 |
| 1 |
Engine diagnosis indicator lamp, actuation |
D5 |
| 2 |
Instrument cluster, message |
F2 |
| 2 |
Instrument cluster, message |
D4 |
| 3 |
Fuel reserve warning lamp, actuation |
F2 |
| 3 |
Fuel reserve warning lamp, actuation |
D4 |
| A1 |
Instrument cluster |
D6 |
| A1e4 |
Fuel reserve indicator lamp |
D7 |
| A1e58 |
Engine diagnosis indicator lamp |
C5 |
| A1p13 |
Multifunction display |
D7 |
| B4/3 |
Fuel tank pressure sensor |
K5 |
| CAN E |
Chassis CAN |
G2 |
| CAN F |
Central CAN |
D4 |
| N3/10 |
ME-SFI [ME] control unit |
J2 |
| N93 |
Central gateway control unit |
D2 |
| Y58/1 |
Purge control valve |
J5 |
| Y58/4 |
Activated charcoal filter shutoff valve |
H5 |
