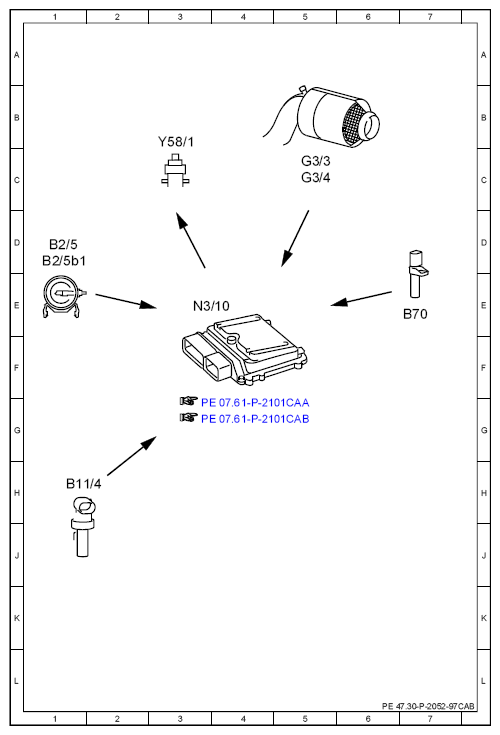

Electrical function diagram for purging function - PE47.30-P-2052-97CAB
| Code: | Designation: | Position: |
|---|---|---|
| B11/4 | Coolant temperature sensor | J1 |
| B2/5 | Hot film mass air flow sensor | E1 |
| B2/5b1 | Intake air temperature sensor | E1 |
| B70 | Crankshaft Hall sensor | E7 |
| G3/3 | Left O2 sensor upstream of TWC [KAT] | B5 |
| G3/4 | Right O2 sensor upstream of TWC [KAT] | B5 |
| N3/10 | ME-SFI [ME] control unit | F4 |
| Y58/1 | Purge control valve | C3 |
