Component description for the fuel level sensor - GF47.10-P-2010V

MODEL 203 with ENGINE 272.920 up to Model Year 8

MODEL 211 with ENGINE 272.922

MODEL 203 with ENGINE 272.940 up to Model Year 8

MODEL 203 with ENGINE 272.941 up to Model Year 8

MODEL 171 with ENGINE 272.942 up to Model Year 8

MODEL 211, 219 with ENGINE 272.943

MODEL 211 with ENGINE 272.944

MODEL 251 with ENGINE 272.945 up to Model Year 8

MODEL 221 with ENGINE 272.946 up to Model Year 8

MODEL 203 with ENGINE 272.960 up to Model Year 8

MODEL 171 with ENGINE 272.963 up to Model Year 8

MODEL 211, 219 with ENGINE 272.964

MODEL 221 with ENGINE 272.965 up to Model Year 8

MODEL 230 with ENGINE 272.966 up to Model Year 8

MODEL 164, 251 with ENGINE 272.967 up to Model Year 8

MODEL 203 with ENGINE 272.970 up to Model Year 8

MODEL 211 with ENGINE 272.972

MODEL 221 with ENGINE 272.975 up to Model Year 8

MODEL 221 with ENGINE 273.922 up to Model Year 8

MODEL 164 with ENGINE 273.923 up to Model Year 8

MODEL 221 with ENGINE 273.924 up to Model Year 8

MODEL 211, 219 with ENGINE 273.960

MODEL 216, 221 with ENGINE 273.961 up to Model Year 8

MODEL 211 with ENGINE 273.962

MODEL 164, 251 with ENGINE 273.963 up to Model Year 8

MODEL 230 with ENGINE 273.965 up to Model Year 8

MODEL 209 with ENGINE 273.967

MODEL 221 with ENGINE 273.968 up to Model Year 8

MODEL 209 with ENGINE 272.940

MODEL 209 with ENGINE 272.960

Shows model 171

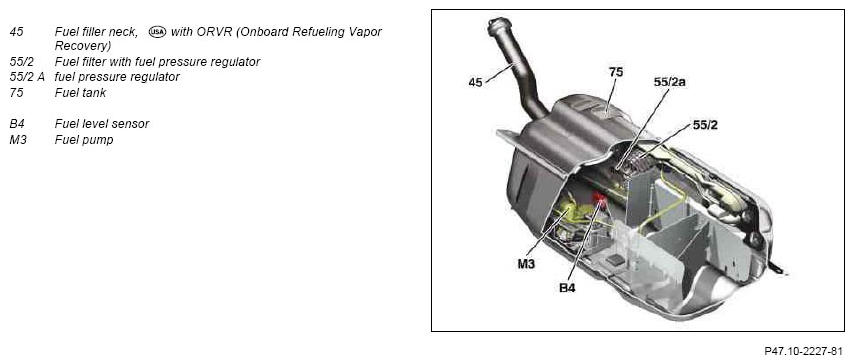

Fig 1: Identifying Fuel Tank Components - Shows Model 171

Courtesy of MERCEDES-BENZ USA

Location

The fuel level sensor is located in the fuel tank. If the fuel tank is divided into two chambers, each chamber has a fuel level sensor.

Task

Determines the fuel level for the following functions:

Fuel level indicator
Leakage check of regeneration system
Misfire detection.

Design

Float-and-lever sensor with two wiper contacts (potentiometer) and a float.

Function

To change the resistance values depending on the fuel level. The signals are transmitted to the nearest SAM control unit (e. g. rear SAM control unit with fuse and relay module for models 171, 211, 219, 221). The signal are digitalized there and transmitted to the CAN data bus.
