Overall network (GVN), networking of components - GF00.19-P-0001-02SXE

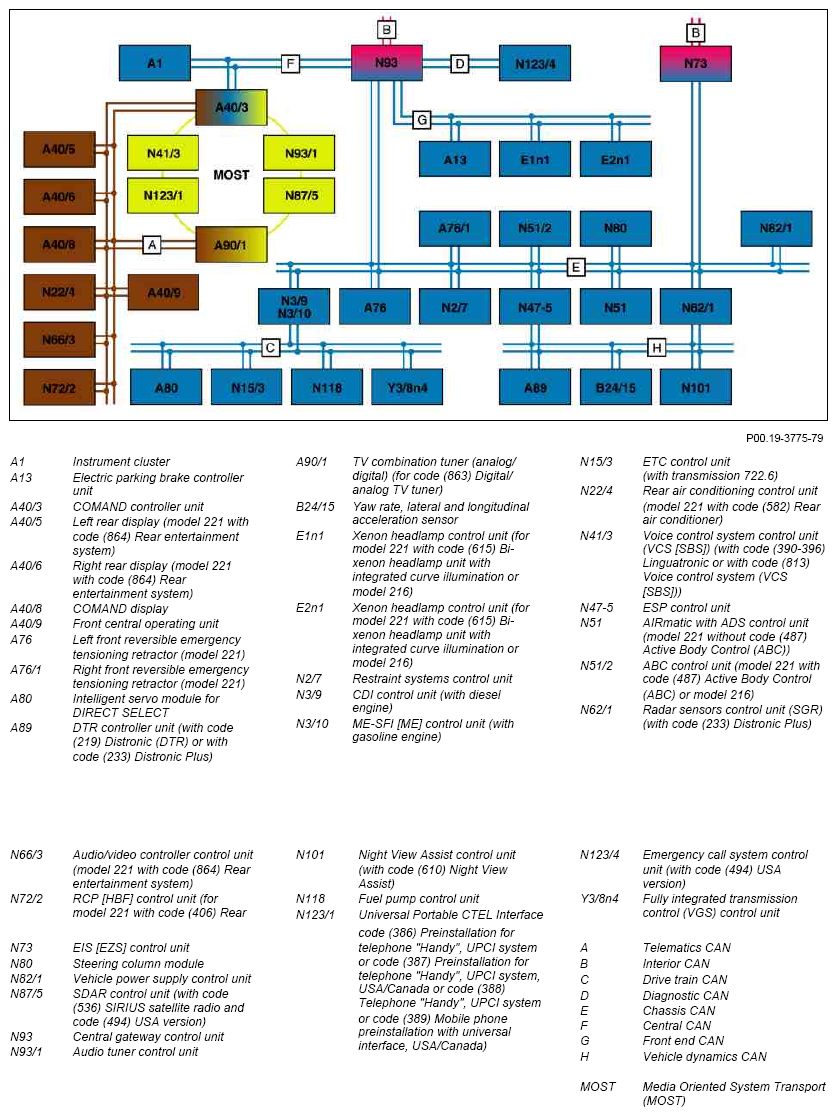

Fig 1: Identifying Overall Network (GVN), Networking Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

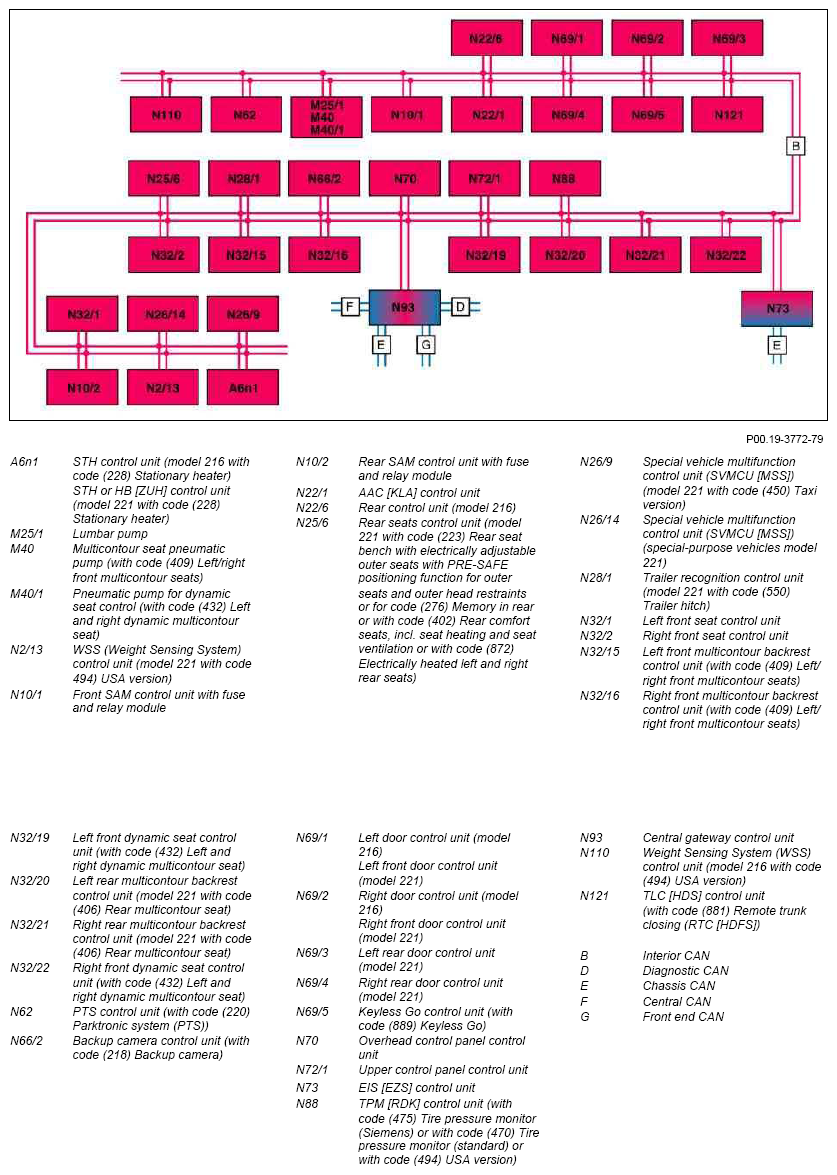

Fig 2: Identifying Overall Network (GVN), Networking Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA
