Overall network (GVN) block diagram - GF00.19-P-0001-03LEA

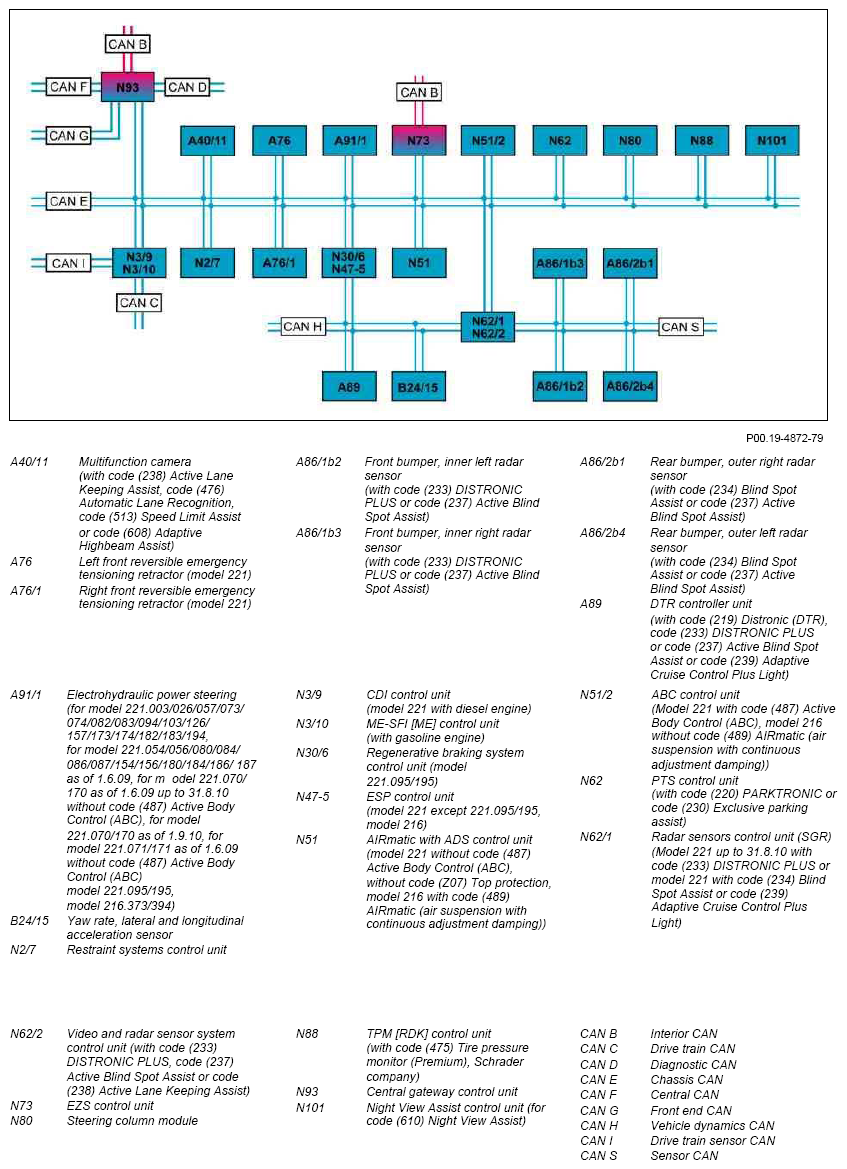

Fig 1: Identifying Overall Network Block Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ USA

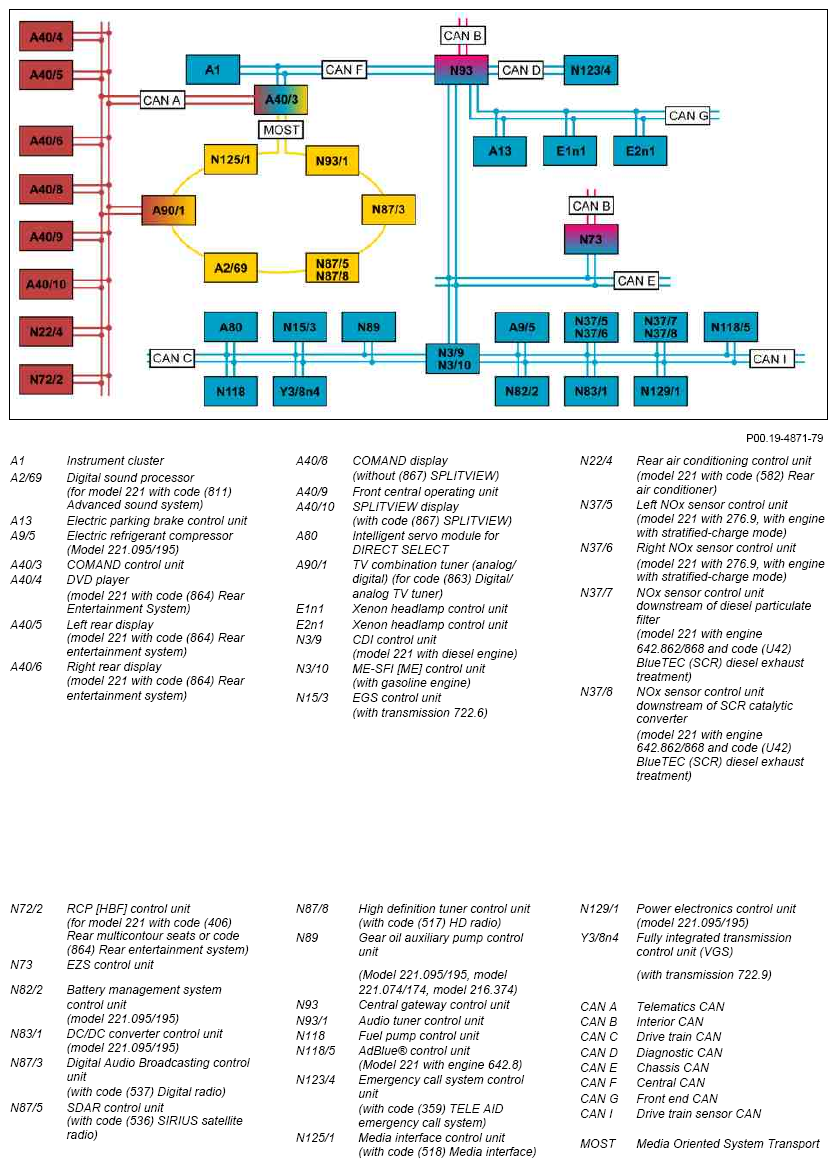

Fig 2: Identifying Overall Network Block Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ USA

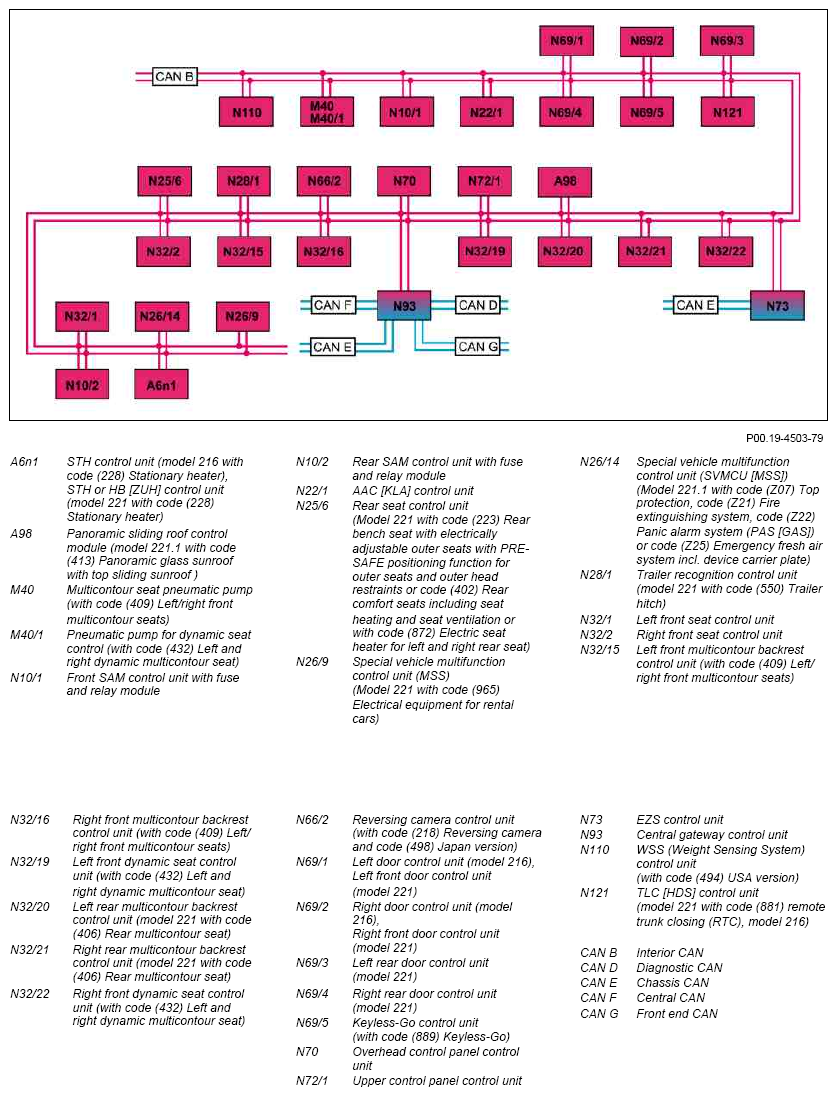

Fig 3: Identifying Overall Network Block Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ USA
