Overall network (GVN) block diagram - GF00.19-P-0001-03LE

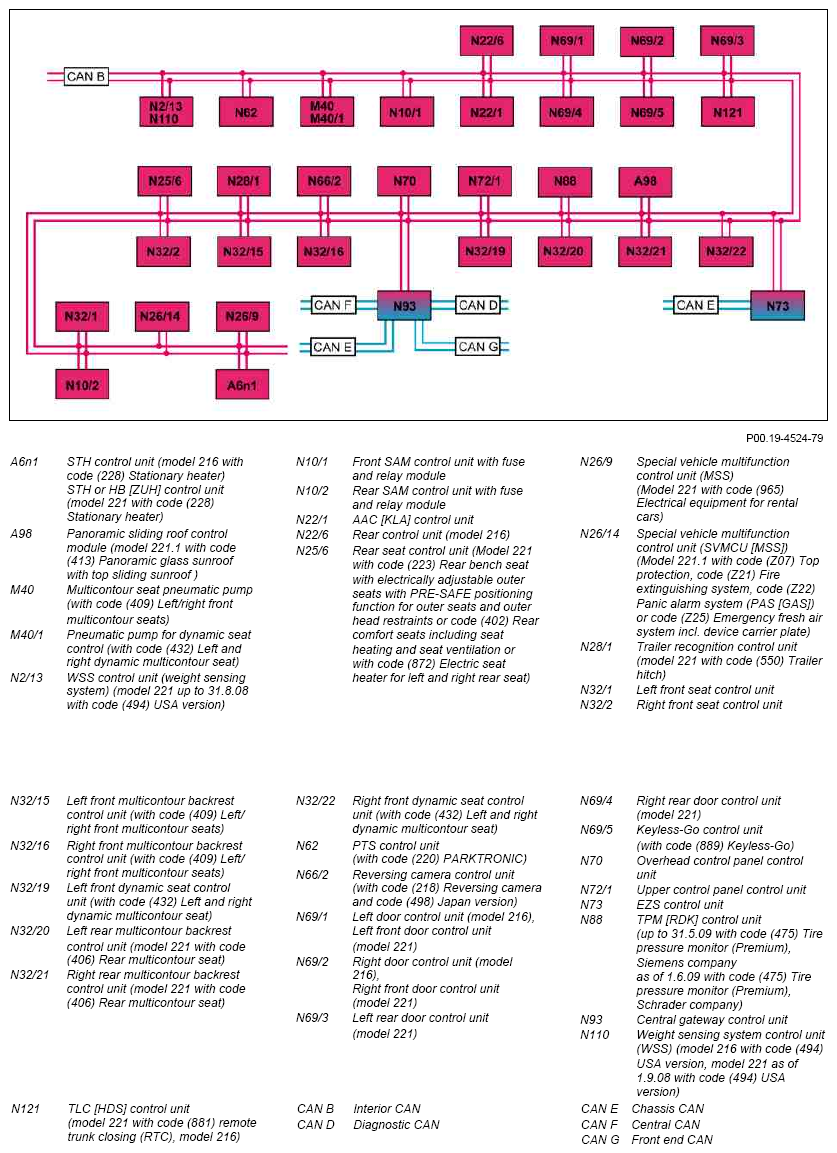

Fig 1: Identifying Vehicle Overall Network Block Diagram (1 Of 2)

Courtesy of MERCEDES-BENZ USA

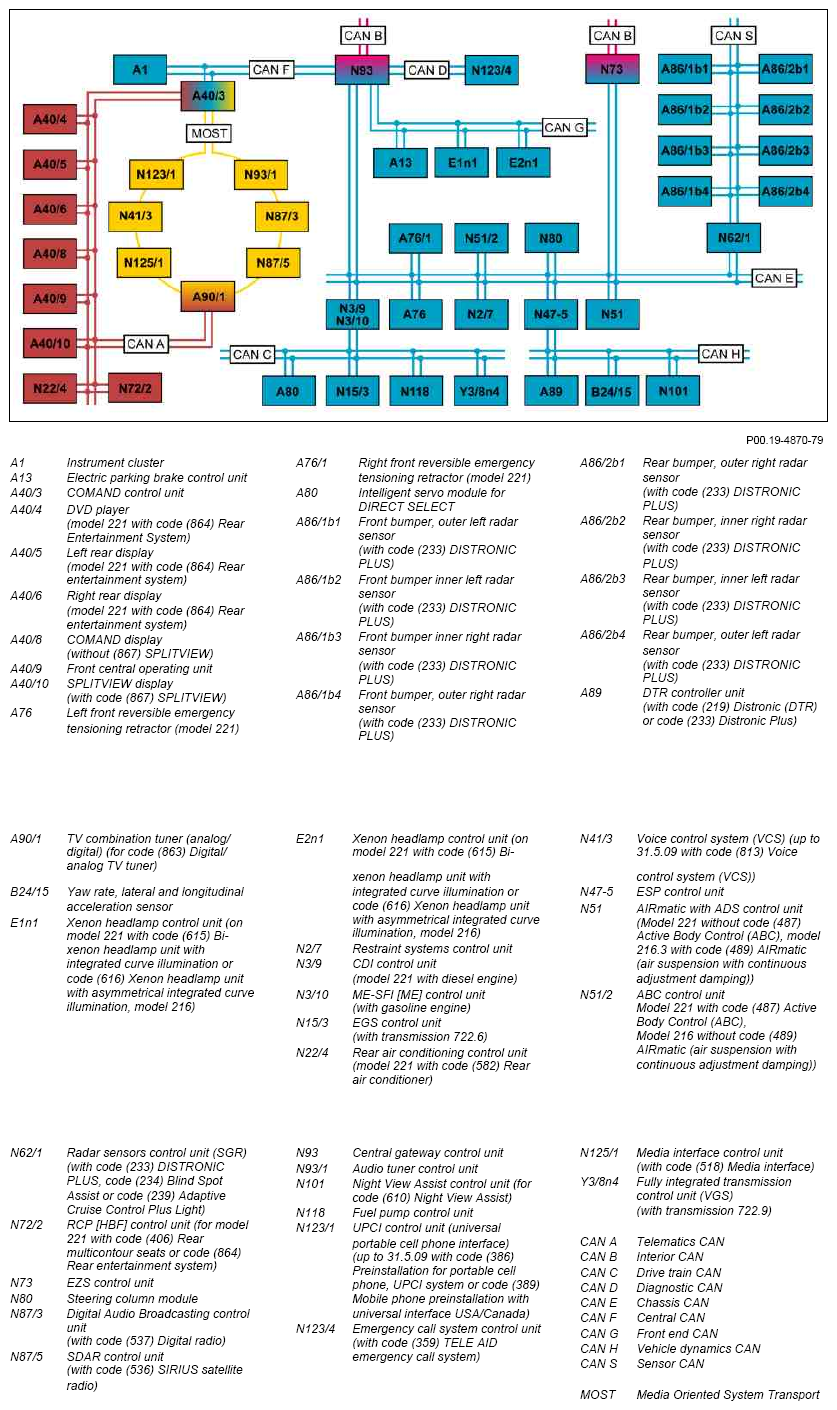

Fig 2: Identifying Vehicle Overall Network Block Diagram (2 Of 2)

Courtesy of MERCEDES-BENZ USA
