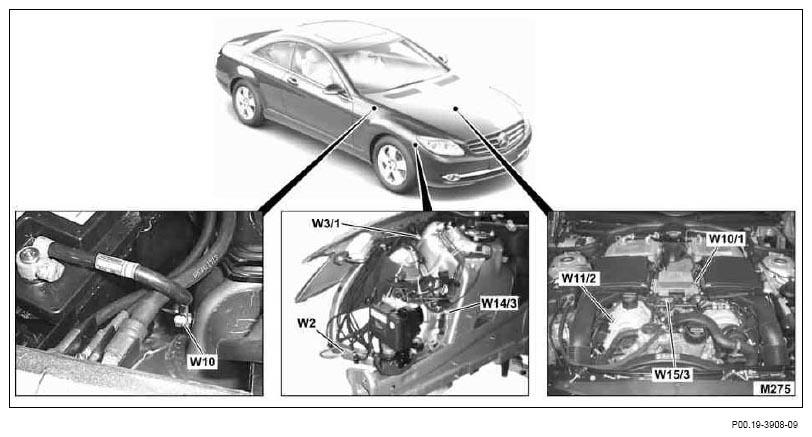

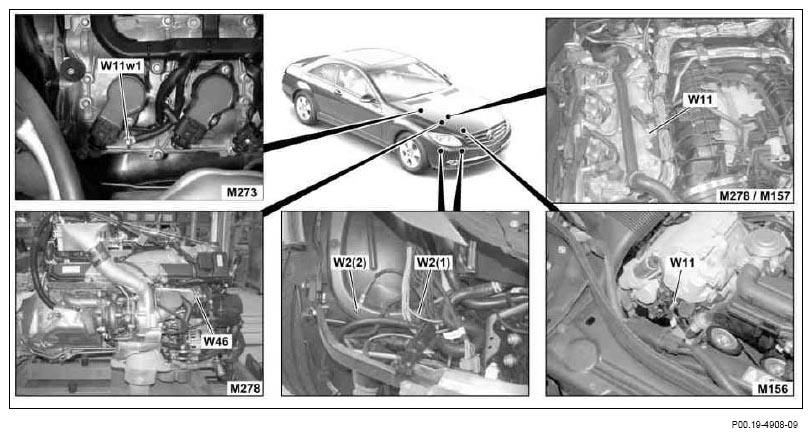

Location and assignment of ground points, engine compartment, right - GF00.19-P-2000-02CAA
Model 216
| Ground point | Designation | Component | Designation | Plug Pin |
|---|---|---|---|---|
| W2 | Ground (right front, at lamp unit) | |||
| Valid for AIRmatic | → A9/1 | AIRmatic compressor unit | 1.1 | |
| → A91/1 | Electrohydraulic power steering | A.2 | ||
| M275Amg | → M4/2 | Coolant additional fan | 1 | |
| M273, M156 | → M4/7 | Engine and AC electric suction fan with integrated control | 1 | |
| W3/1 | Ground (right front wheelhouse) | |||
| → 05/09 | → A89 | DTR control unit | 6 | |
| 06/09 → | → A89 | DTR control unit | 8 | |
| RHD, up to 08/10 | → E1 | Left front headlamp unit | 1.1 1.3 |
|
| RHD, as of 09/10 | → E1 | Left front headlamp unit | 5 10 |
|
| → E1/3 | Left daytime running lamps headlamp | 1 | ||
| LHD, up to 08/10 | → E2 | Right front headlamp unit | 1.1 1.3 |
|
| LHD, as of 09/10 | → E2 | Right front headlamp unit | 5 10 |
|
| RHD, up to 08/10 | → E5/1 | Left front fog lamp | 1 | |
| As of 09/10 | → E5/1 | Left front fog lamp | 1 | |
| LHD, up to 08/10 | → E5/2 | Right fog lamp | 1 | |
| As of 09/10 | → E5/2 | Right fog lamp | 1 | |
| up to 05/08, LHD | → F32 | Front prefuse | MR5.1 | |
| → H2/1 | Right fanfare horn | 1 | ||
| RL | → M6/6 | Master wiper motor | 2 | |
| RL | → M6/7 | Slave wiper motor | 2 | |
| LHD | → R2/10 | Wiper rest heater | 1 | |
| W10 | Ground (battery) | |||
| Up to 05/08 | → G1/4 | Starter battery | 1 | |
| W10/1 | Ground (electronics) | |||
| M275 | → W15/3 | Ground (electronics) | ||
| W11 | Ground (engine - electrical line connected) | |||
| M156 | → C4/2 | Radio interference suppression capacitor 2 | 2 | |
| M156 | → M33 | Electric air pump | 2 | |
| M156 | → T1/1 | Cylinder 1 ignition coil | 3 | |
| M156 | → T1/2 | Cylinder 2 ignition coil | 3 | |
| M156 | → T1/3 | Cylinder 3 ignition coil | 3 | |
| M156 | → T1/4 | Cylinder 4 ignition coil | 3 | |
| W11 | Ground (engine - electrical line connected) | |||
| M157, M278 | → Z6/8 | Sensor ground connector sleeve | ||
| M157, M278 | → T1/1 | Cylinder 1 ignition coil | 2 | |
| M157, M278 | → T1/2 | Cylinder 2 ignition coil | 2 | |
| M157, M278 | → T1/3 | Cylinder 3 ignition coil | 2 | |
| M157, M278 | → T1/4 | Cylinder 4 ignition coil | 2 | |
| W11w1 | Ground (engine - electrical line connected) | |||
| M273 | → C4/2 | Radio interference suppression capacitor 2 | 2 | |
| M273 | → T1/5 | Cylinder 5 ignition coil | 3 | |
| M273 | → T1/6 | Cylinder 6 ignition coil | 3 | |
| M273 | → T1/7 | Cylinder 7 ignition coil | 3 | |
| M273 | → T1/8 | Cylinder 8 ignition coil | 3 | |
| W11/2 | Ground (engine, right) | |||
| M275 | → W15/3 | Ground (electronics) | ||
| W14/3 | Right ADAPTIVE BRAKE ground | → N47-5 | ESP control unit | 1.16 1.47 |
| W15/3 | Ground (electronics) | |||
| M275 | → C4 | Radio interference suppression capacitor | ||
| M275 | → W10/1 | Ground (electronics) | ||
| M275 | → W11/2 | Ground (engine, right) | ||
| M275 | → W11/3 | Ground (engine, left) | ||
| W15/3 | Ground (electronics) | |||
| M156 | → X26 | Interior and engine wiring harness connector | 2 7 |
|
| M156 | → Z6/30 (1) | Circuit 31 connector sleeve | ||
| M156 | → Z6/30 (2) | Circuit 31 connector sleeve | ||
| W46 | Ground (electronics) | |||
| M278 | → M33 | Electric air pump | 2 |
