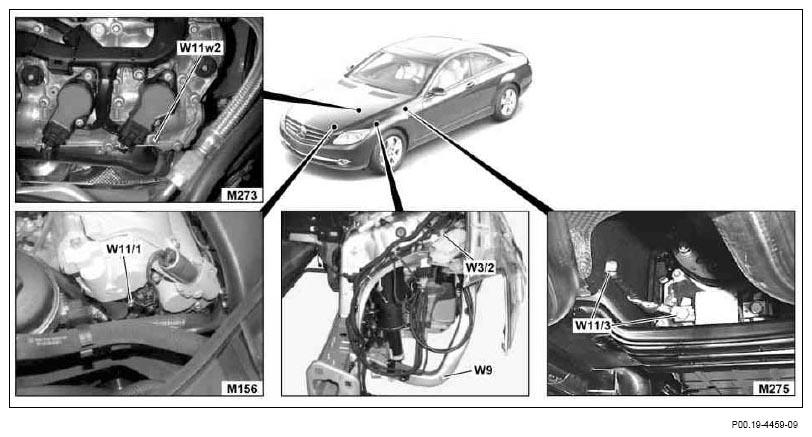

Location and assignment of ground points, engine compartment, left - GF00.19-P-2000-01CAA
Model 216
| Ground point | Designation | Component | Designation | Plug Pin |
|---|---|---|---|---|
| W3/2 | Ground (left front wheelhouse) | |||
| LHD, up to 08/10 | → E1 | Left front headlamp unit | 1.1 1.3 |
|
| RHD, up to 08/10 | → E2 | Right front headlamp unit | 1.1 1.3 |
|
| LHD, as of 09/10 | → E1 | Left front headlamp unit | 5 10 |
|
| RHD, as of 09/10 | → E2 | Right front headlamp unit | 5 10 |
|
| up to 08/10, LHD | → E5/1 | Left front fog lamp | 1 | |
| Up to 08/10, RHD | → E5/2 | Right fog lamp | 1 | |
| Up to 05/08, RHD | → F32 | Front prefuse | MR5.1 | |
| → H2 | Left fanfare horn | 1 | ||
| →M5/1 | Windshield washer fluid pump | 2 | ||
| → M5/2 | HCS [SRA] pump | 2 | ||
| LHD | → M6/6 | Master wiper motor | 3 | |
| LHD | → M6/7 | Slave wiper motor | 3 | |
| → M13 | Heating water circulation pump | 2 | ||
| RL | → R2/10 | Wiper rest heater | 1 | |
| → R2/11 | Washer nozzle hose heater | 2 | ||
| W9 | Ground (left front, at lamp unit) | |||
| M275, M157, M278 | → M4/7 | Engine and AC electric suction fan with integrated control | 1 | |
| W11w2 | Ground (engine - electrical line connected) | |||
| M273 | → C4/1 | Radio interference suppression capacitor 1 | 2 | |
| M273 | → T1/1 | Cylinder 1 ignition coil | 3 | |
| M273 | → T1/2 | Cylinder 2 ignition coil | 3 | |
| M273 | → T1/3 | Cylinder 3 ignition coil | 3 | |
| M273 | → T1/4 | Cylinder 4 ignition coil | 3 | |
| W11/1 | Ground (engine - ground strap) | |||
| M156 | → C4/1 | Radio interference suppression capacitor 1 | 2 | |
| M156 | → T1/5 | Cylinder 5 ignition coil | 3 | |
| M156 | → T1/6 | Cylinder 6 ignition coil | 3 | |
| M156 | → T1/7 | Cylinder 7 ignition coil | 3 | |
| M156 | → T1/8 | Cylinder 8 ignition coil | 3 | |
| W11/3 | Ground (engine, left) | |||
| M275 | → W15/3 | Ground (electronics) |
