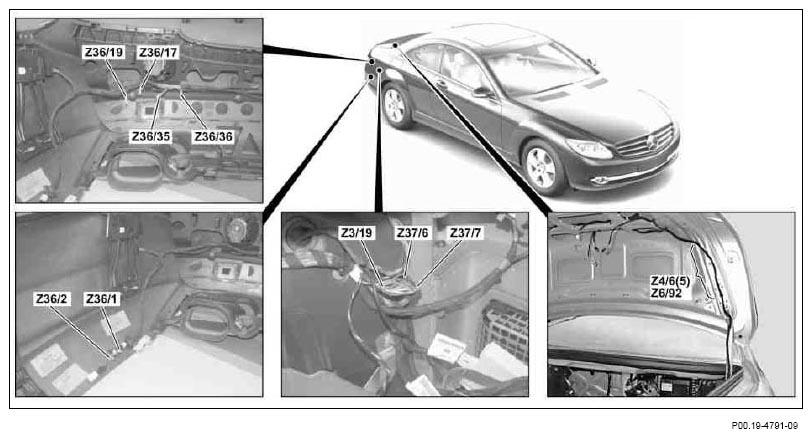

Location and assignment of Z connector sleeves (connectors and wiring harness) - trunk right - GF00.19-P-3000-07CAA
Model 216
| Z connector sleeve | Designation | Component | Designation | Connector. Pin |
|---|---|---|---|---|
| Z3/19 | Circuit 15 connector sleeve (fused) (PTS) | → N10/2 | Rear SAM control unit with fuse and relay module | 135 |
| → N62/1 | Radar sensors control unit (SGR) | A.5 | ||
| → Z36/27 | DISTRONIC front voltage supply connector sleeve | |||
| → Z36/35 | Rear radar sensors sensor power connector sleeve supply | |||
| Z4/6 (5) | Luggage compartment lamp circuit 30 connector sleeve | → N10/2 | Rear SAM control unit with fuse and relay module | K4.26 |
| →E40/2 | Left trunk lid ambient and warning lamp | 2 | ||
| →E40/3 | Right trunk lid ambient and warning lamp | 2 | ||
| Z6/92 | Trunk lid ground connector sleeve | ← W54 | Ground (right rear wheelhouse) | |
| As of 09/10 | → E7/1 | Left backup lamp | x1.1 | |
| As of 09/10 | → E7/2 | Right backup lamp | x1.1 | |
| →E19/1 | Left license plate lamp | 2 | ||
| →E19/2 | Right license plate lamp | 2 | ||
| →E40/2 | Left trunk lid ambient and warning lamp | 1 | ||
| →E40/3 | Right trunk lid ambient and warning lamp | 1 | ||
| up to 05/07 | → S62/21 | Trunk lid Keyless Go push-button | 1 | |
| Valid for USA | → S88/6 | Trunk lid contact switch | 1 | |
| →S88/8 | Trunk lid external operation switch | 1 | ||
| Valid for USA | → S88/10 | Trunk lid emergency release switch | 1 | |
| Z36/1 | Rear PTS sensor ground connector sleeve | |||
| Up to 08/07 | ← N62 | PTS control unit | A.8 | |
| As of 09/07 | ← N62 | PTS control unit | A.7 | |
| →B8/7 | Outer right rear PTS ultrasonic sensor | 2 | ||
| →B8/8 | Inner right rear PTS ultrasonic sensor | 2 | ||
| →B8/9 | Inner left rear PTS ultrasonic sensor | 2 | ||
| →B8/10 | Outer left rear PTS ultrasonic sensor | 2 | ||
| Z36/2 | Rear PTS sensor voltage supply connector sleeve | ← | ||
| Up to 08/07 | ← N62 | PTS control unit | A.28 | |
| As of 09/07 | ← N62 | PTS control unit | A.16 | |
| →B8/7 | Outer right rear PTS ultrasonic sensor | 3 | ||
| →B8/8 | Inner right rear PTS ultrasonic sensor | 3 | ||
| →B8/9 | Inner left rear PTS ultrasonic sensor | 3 | ||
| →B8/10 | Outer left rear PTS ultrasonic sensor | 3 | ||
| Z36/17 | Rear CAN (low) sensor connector sleeve | |||
| Up to 05/09 | ← N62/1 | Radar sensors control unit (SGR) | A.15 | |
| Up to 05/09 | → A86/2b1 | Right outer radar sensor, rear bumper | 5.3 | |
| As of 06/09 | → A86/2b1 | Right outer radar sensor, rear bumper | 3 | |
| Up to 05/09 | → A86/2b2 | Right inner radar sensor, rear bumper | 6.3 | |
| Up to 05/09 | → A86/2b3 | Left inner radar sensor, rear bumper | 7.3 | |
| Up to 05/09 | → A86/2b4 | Left outer radar sensor, rear bumper | 8.3 | |
| As of 06/09 | → A86/2b4 | Left outer radar sensor, rear bumper | 3 | |
| As of 06/09 | → Z37/7 | CAN bus (low) connector sleeve | ||
| Z36/19 | Rear CAN (high) sensor connector sleeve | |||
| Up to 05/09 | ← N62/1 | Radar sensors control unit (SGR) | A.14 | |
| Up to 05/09 | → A86/2b1 | Right outer radar sensor, rear bumper | 5.2 | |
| As of 06/09 | → A86/2b1 | Right outer radar sensor, rear bumper | 2 | |
| Up to 05/09 | → A86/2b2 | Right inner radar sensor, rear bumper | 6.2 | |
| Up to 05/09 | → A86/2b3 | Left inner radar sensor, rear bumper | 7.2 | |
| Up to 05/09 | → A86/2b4 | Left outer radar sensor, rear bumper | 8.2 | |
| As of 06/09 | → A86/2b4 | Left outer radar sensor, rear bumper | 2 | |
| As of 06/09 | → Z37/6 | CAN databus (high) connector sleeve | ||
| Z36/35 | Rear radar sensors sensor power supply connector sleeve | ← Z3/19 | Circuit 15 connector sleeve (fused) (PTS) | |
| →A86/2b2 | Right inner radar sensor, rear bumper | 4 | ||
| →A86/2b4 | Left outer radar sensor, rear bumper | 4 | ||
| Z36/36 | Rear radar sensors sensor ground connector sleeve | ← W7/1 | Ground (right taillamp in trunk) | |
| →A86/2b2 | Right inner radar sensor, rear bumper | 1 5 6 |
||
| →A86/2b4 | Left outer radar sensor, rear bumper | 1 | ||
| Z37/6 | CAN databus (high) connector sleeve | |||
| Up to 08/10 | ← N62/1 | Radar sensors control unit (SGR) | A.14 | |
| As of 09/10 | ← N62/2 | Video and radar sensor system control unit | A.14 | |
| →Z36/18 | Front CAN (high) sensor connector sleeve | |||
| →Z36/19 | Rear CAN (high) sensor connector sleeve | |||
| Z37/7 | CAN bus (low) connector sleeve | |||
| Up to 08/10 | ← N62/1 | Radar sensors control unit (SGR) | A.15 | |
| As of 09/10 | ← N62/2 | Video and radar sensor system control unit | A.15 | |
| →Z36/16 | Front CAN (low) sensor connector sleeve | |||
| →Z36/17 | Rear CAN (low) sensor connector sleeve |
