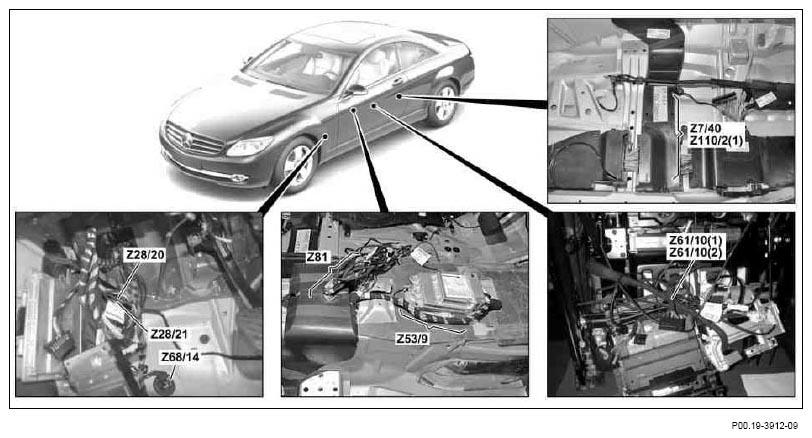

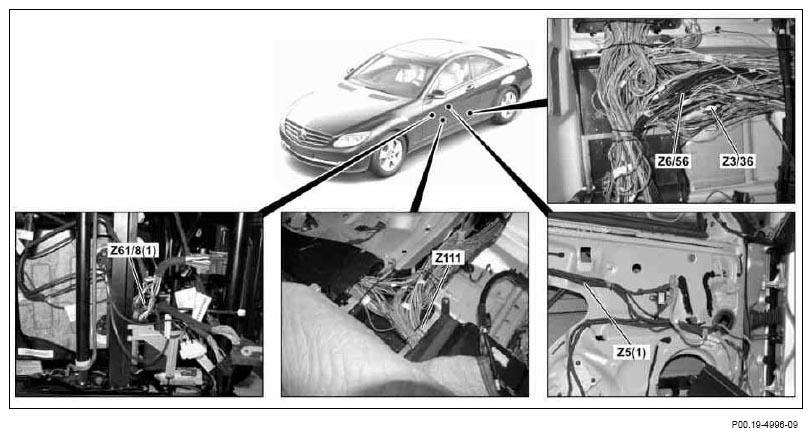

Location and assignment of Z connector sleeves (cable connections in wiring harness) - interior left - GF00.19-P-3000-04CAA
Model 216
| Z connector sleeve | Designation | Component | Designation | Connector. Pin |
|---|---|---|---|---|
| Z3/36 | ACSR [AKSE] circuit 15R connector sleeve | ← N10/1 | Front SAM control unit with fuse and relay module | 61 |
| ECE | → A60 | Vehicle-sensitive seat belt lock sensor | 1 | |
| ECE | → B48 | Front passenger seat occupied and child seat recognition sensor | 3 | |
| →N2/7 | Restraint systems control unit | 1.2 | ||
| Z5(1) | Connector sleeve (solder connector in harness) | ← N69/1 | Door control module left 8.4 | 8.8 |
| →A85 | Left door lock unit | 1.5 | ||
| →B58 | Driver door infrared sensor | 3 | ||
| Z6/56 | Circuit 31 connector sleeve | ← W6 | Ground (left wheelhouse in luggage compartment) | |
| USA | → A28/2x1 | Portable CTEL antenna amplifier connector | 1.2 | |
| →A28/3 | E-net compensator | 1.2 | ||
| Up to 05/09 | → N123/1 | Universal Portable CTEL Interface (UPCI [UHI]) control unit | 1.3 1.4 |
|
| As of 06/09 | → A34/7 | Bluetooth module | 1.2 | |
| Z7/40 | Tml. 30 connector sleeve | → N10/2 | Rear SAM control unit with fuse and relay module | |
| Up to 05/08 | 148 | |||
| as of 06/08 | I1.7 | |||
| Valid for |
→ A28/2x1 | Portable CTEL antenna amplifier connector | 1.1 | |
| Valid for all (except |
→A28/3 | E-net compensator | 1.1 | |
| As of 06/09 | → A34/7 | Bluetooth module | 1.1 | |
| Up to 05/09 | → N123/1 | Universal Portable CTEL Interface (UPCI [UHI]) control unit | 1.20 1.21 |
|
| Z28/20 | Left A-pillar speaker group connector sleeve (+ signal) | ← N93/1 | Audio tuner control unit | 5.5 |
| Not valid for sound | → H4/1h1 | Left door tweeter | 2 | |
| Not valid for sound | → H4/1h2 | Left door woofer | 2 | |
| Sound system | → H4/68 | Left door Sound tweeter | 2 | |
| Sound system | → H4/72x1 | Left door Sound woofer and midrange speaker group connector | 1.4 | |
| Z28/21 | Left A-pillar speaker group connector sleeve (- signal) | ← N93/1 | Audio tuner control unit | 5.6 |
| Not valid for sound | → H4/1h1 | Left door tweeter | 1 | |
| Not valid for sound | → H4/1h2 | Left door woofer | 1 | |
| Sound system | → H4/68 | Left door Sound tweeter | 1 | |
| Sound system | → H4/72x1 | Left door Sound woofer and midrange speaker group connector | 1.3 | |
| Z53/9 | Interior sleeve connector, airbag circuit 31 | ← N2/7 | Restraint systems control unit | 1.15 1.16 |
| →A60 | Vehicle-sensitive seat belt lock sensor | 2 | ||
| ECE | → B48 | Front passenger seat occupied and child seat recognition sensor | 4 | |
| →B48/1 | Driver-side frontal acceleration sensor | 2 | ||
| →B48/2 | Passenger-side frontal acceleration sensor | 2 | ||
| →B48/5 | Airbag system driver assist | 2 | ||
| →B48/6 | Airbag system front passenger assist | 2 | ||
| →B48/7 | Driver door pressure sensor | 3 | ||
| →B48/8 | Front passenger door pressure sensor | 3 | ||
| →N32/1 | Left front seat control unit | 1.12 | ||
| WSS | → N110 | Weight Sensing System (WSS) control unit | 14 | |
| →S68/1 | Driver seat belt buckle and seat belt warning switch | 2 | ||
| →S68/2 | Front passenger seat belt buckle and seat belt warning switch | 2 | ||
| →W26 | Ground (restraint systems control unit) | |||
| Z61/10 (1) | Driver seat backrest/head restraint motor connector sleeve | ← N32/1 | Left front seat control unit | 5.43 |
| →M27/4 | Left front head restraint motor | 2 | ||
| →M27/5 | Left front backrest angle adjustment motor | 3 | ||
| Z61/10 (2) | Driver seat backrest/head restraint motor connector sleeve | ← N32/1 | Left front seat control unit | 4.2 |
| →M27/4 | Left front head restraint motor | 1 | ||
| →M27/5 | Left front backrest angle adjustment motor | 1 | ||
| Z68/14 | TPM [RDK] LIN bus ground connector sleeve | ← N88 | TPM [RDK] control unit | 1.15 |
| →A2/44 | Left front TPM [RDK] wheel antenna | 3 4 |
||
| Z81z2 | Circuit 58d connector sleeve | ← Z81/5 | Circuit 58d COC connector sleeve | |
| USA | → S93/3 | SOS push-button switch | K.4 | |
| USA | → S93/6 | MB-Info and telediagnosis button group | x1.5 | |
| Z110/2(1) | AC bus solder terminal | ← N10/1 | Front SAM control unit with fuse and relay module | I5.16 |
| →B82 | Vehicle interior humidity/temperature sensor | 1 | ||
| →M16/33 | Left B-pillar air distribution actuator motor | 1 | ||
| →M16/34 | Right B-pillar air distribution actuator motor | 1 | ||
| →X53/1 | Air conditioning connector | 3.1 |
