Female contacts and contact pins, installation survey, as-built configuration - GF00.19-P-7000A

MODEL 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 204, 208, 209, 210, 211, 215, 216, 219, 220, 221, 230, 240, 245, 251, 414, 461, 463

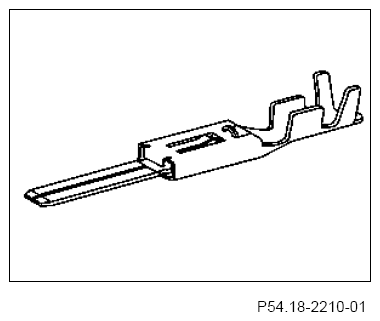

Fig 1: Identifying Junior Power Timer Pin

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Standard Power Timer Pin

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Junior Power Timer Bushing

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Standard Power Timer Bushing

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Micro-Timer 3 Bushing

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Maxi Power Timer Bushing

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Micro Quadlock System Male Contact

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Sensor Spade-Type Contact Pin

Courtesy of MERCEDES-BENZ USA

Fig 9: Identifying Spade-Type Sensor Contact Pin

Courtesy of MERCEDES-BENZ USA

Fig 10: Identifying E95 Female

Courtesy of MERCEDES-BENZ USA

Fig 11: Identifying Multi Contact Point Bushing

Courtesy of MERCEDES-BENZ USA

Fig 12: Identifying Micro Quadlock System Female Contact

Courtesy of MERCEDES-BENZ USA

Fig 13: Identifying Sensor Spade-Type Contact Bushing

Courtesy of MERCEDES-BENZ USA

Fig 14: Identifying Spade-Type Sensor Contact Bushing

Courtesy of MERCEDES-BENZ USA

Fig 15: Identifying Siemens ELO Pin

Courtesy of MERCEDES-BENZ USA

Fig 16: Identifying Round Plug Contact-2.5 Solder Male Contact

Courtesy of MERCEDES-BENZ USA

Fig 17: Identifying Round Plug Contact-2.5 Variant-1-Pin

Courtesy of MERCEDES-BENZ USA

Fig 18: Identifying Spade-Type Contact System (LKS)-1.5-Pin

Courtesy of MERCEDES-BENZ USA

Fig 19: Identifying Siemens ELO Bushing

Courtesy of MERCEDES-BENZ USA

Fig 20: Identifying Round Plug Contact (RK)-2.5 Solder Female Contact

Courtesy of MERCEDES-BENZ USA

Fig 21: Identifying Round Plug Contact-2.5 Variant-1 Bushing

Courtesy of MERCEDES-BENZ USA

Fig 22: Identifying Spade-Type Contact System (LKS)-1.5 Bushing

Courtesy of MERCEDES-BENZ USA

Fig 23: Identifying Mini Spade-Type Contact (MLC)-1.2 Bushing

Courtesy of MERCEDES-BENZ USA

Fig 24: Identifying YAZAKI 1.5 System

Courtesy of MERCEDES-BENZ USA

Fig 25: Identifying Micro Quadlock System Male Contact For Flat Conductor Model FFC

Courtesy of MERCEDES-BENZ USA

Fig 26: Identifying Angled-Flat Contact With Auxiliary Spring

Courtesy of MERCEDES-BENZ USA

Fig 27: Identifying Mini Spade-Type Contact (MLC)-1.2-Pin

Courtesy of MERCEDES-BENZ USA

Fig 28: Identifying Mini Spade-Type Contact (MLC)-1.2- USC Bushing

Courtesy of MERCEDES-BENZ USA

Fig 29: Identifying YAZAKI 6.3 System

Courtesy of MERCEDES-BENZ USA

Fig 30: Identifying Micro Quadlock System Female Contact For Flat Conductor Model FFC

Courtesy of MERCEDES-BENZ USA

Fig 31: Identifying Micro Quadlock System Male Contact For Flat Conductor Model FPC

Courtesy of MERCEDES-BENZ USA

Fig 32: Identifying Miniature Double Flat Spring Contact Female Connector

Courtesy of MERCEDES-BENZ USA

Fig 33: Identifying Micro Quadlock System Female Contact For Flat Conductor Model FPC

Courtesy of MERCEDES-BENZ USA

Fig 34: Identifying Double Flat Spring Female Contact (DFK)

Courtesy of MERCEDES-BENZ USA

Notes on replacement of safety-relevant and special components	Model 124, 126, 129, 140, 163, 164, 168, 169, 170, 171, 199, 202, 203, 204, 208, 209, 210, 211, 215, 216, 219, 220, 221, 230, 240, 245, 251, 414, 461 as of 1.4.94, 463	AH00.19-P-1000-08A
Notes regarding plug connections		AH00.19-P-1000-06A
Junior power timer contact family	Plugs and couplings	GF00.19-P-8106A
Standard power timer contact family	Plugs and couplings	GF00.19-P-8108A
Micro timer 3 contact family	Couplings.	GF00.19-P-8105A
Maxi power timer contact family	Couplings.	GF00.19-P-8110A
E95 contact family	Couplings.	GF00.19-P-8104A
Multi contact point contact family	Plugs and couplings	GF00.19-P-8107A
Micro quadlock system contact family	Micro quadlock system, variant 1 contact family Plugs and couplings	GF00.19-P-8102A
Micro quadlock system contact family	Micro quadlock system, variant 2 contact family Plugs and couplings	GF00.19-P-8102B
Sensor laminated contact, contact family	Sensor spade-type contact Design 97 contact family Plugs and couplings	GF00.19-P-8101A
Sensor laminated contact, contact family	Sensor spade-type contact, variant 2 contact family Plugs and couplings	GF00.19-P-8101B
Spade-type sensor contact family	Plugs and couplings	GF00.19-P-8109A
Siemens ELO contact family	Plugs and couplings	GF00.19-P-8103A
Round plug contact 2.5 variant 1 contact family	Plugs and couplings	GF00.19-P-8111A
Round-type contact 2.5 solder contact family	Plugs and couplings	GF00.19-P-8112A
Spade-type contact system 1.5 contact family	Plugs and couplings	GF00.19-P-8113A
Mini spade-type contact family	Plugs and couplings	GF00.19-P-8115A
YAZAKI 1.5 system contact family	Plugs and couplings	GF00.19-P-8118A
Miniature double flat spring female contact family	Plugs and couplings	GF00.19-P-8119A
Double flat spring female contact family	Plugs and couplings	GF00.19-P-8120A
