Night vision assist, networking of components - GF54.30-P-0005-02SX

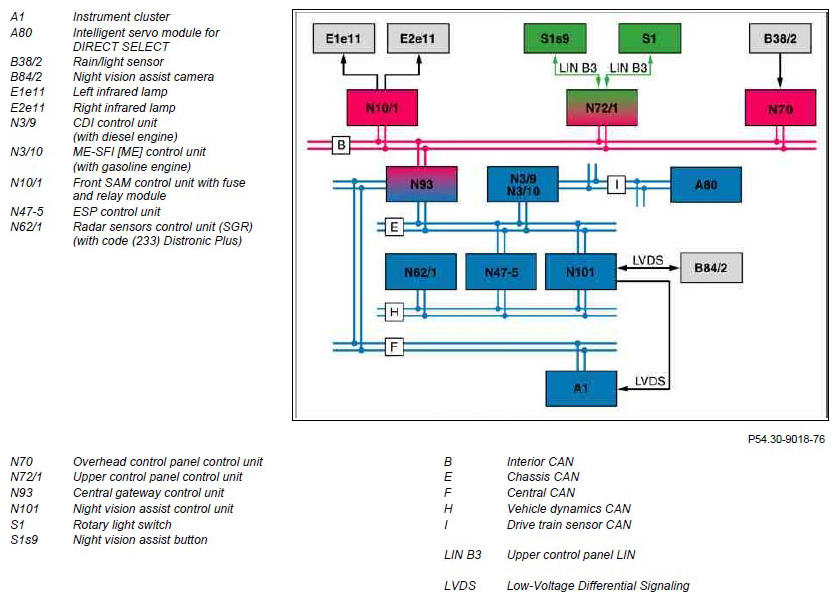

Fig 1: Identifying Night Vision Assist Components Networking Diagram

G07638264

Courtesy of MERCEDES-BENZ USA
