Night vision assist, location of components - GF54.30-P-0005-01SX

Shown on model 221.0

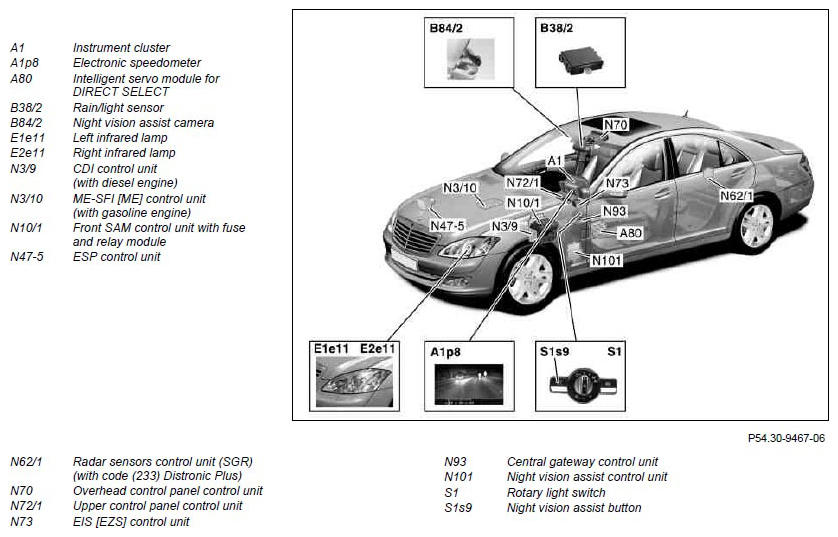

Fig 1: Identifying Night Vision Assist Components Location

G07638263

Courtesy of MERCEDES-BENZ USA
