Energy management, location of components - GF54.10-P-0003-01LE

Shown on model 221

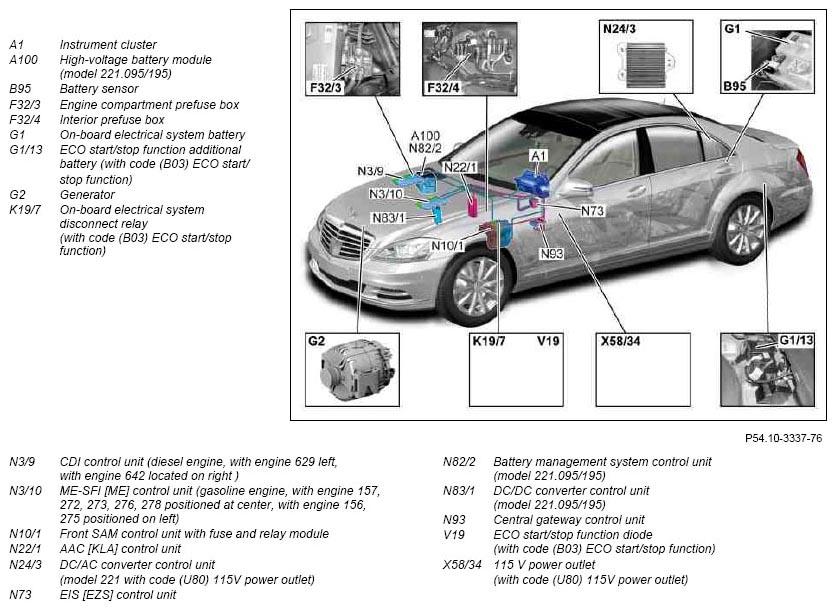

Fig 1: Identifying Energy Management Components Location

G07638111

Courtesy of MERCEDES-BENZ USA
