Remove/install radar sensors control unit - AR54.65-P-0040SC
MODEL 216.3 with CODE (229) Park Assist with CODE (230) Advanced Parking Guidance with CODE (233) Distronic Plus with CODE (234) Blind Spot Assist
| Remove/install | |||
| 1 | Switch off ignition and withdraw transmitter key or Keyless Go start/stop button from the EIS [EZS] control unit | ||
| 2 | Remove spare tire well panel, loosen panel in side of luggage compartment and move to one side until the radar sensors control unit (N62/1) is accessible | AR68.30-P-4600SX | |

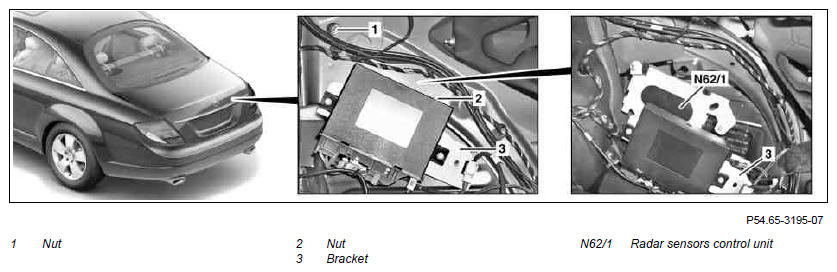

| 3 | Undo nut (1), remove nut (2), remove bracket (3) and place to one side with lines still attached | ||
| 4 | Detach electrical connector from radar sensors control unit (SGR) (N62/1) and remove radar sensors control unit (N62/1) | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 5 | Install in the reverse order | ||
| 6 | Check software release and update if necessary | Only when replacing the radar sensors control unit (N62/1) or when replacing the radar sensors. | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-P-2000-04A |
