Remove/install front prefuse box - AR54.15-P-1330SX

MODEL 216.3 up to 1.6.08 except CODE (809) Model year 2009

MODEL 221.0 /1 up to 1.6.08 except CODE (809) Model year 2009

Shown on model 221

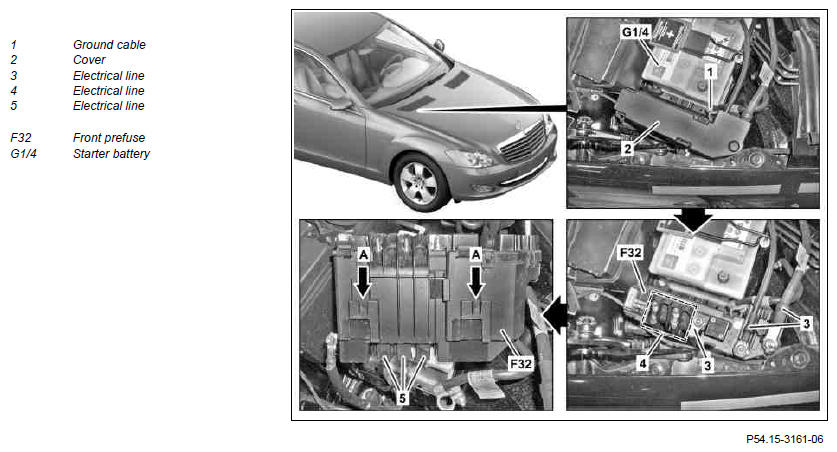

Fig 1: Identifying Front Pre-Fuse, Starter Battery, Cable And Electrical Lines

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Disconnect ground line (1) of starter battery (G1/4) and the on-board electrical system battery	Disconnect ground line (1) on on-board electrical system with two batteries.	AR54.10-P-0003SX
2	Unclip cover (2) on the front prefuse box (F32)
3	Detach electrical lines (3) at the top of the prefuse box at the front (F32)	Installation  : The electrical lines (3) are coded.
4	Detach electrical lines (4) at the top of the prefuse box at the front (F32)	The number of the electrical lines (4) differs depending on the vehicle equipment. Installation  : The electrical lines (4) are coded.
5	Unclip prefuse box at front (F32) (arrows A), pull out upwards and place to one side	Installation  : Pay attention to correct seat of prefuse box at front (F32).
6	Disconnect electrical connectors (5) at bottom of prefuse box at front (F32)
7	Remove prefuse box at front (F32)
8	Install in the reverse order
