Remove/install battery sensor - AR54.10-P-0002SX
MODEL 216.3 as of 2.6.08
MODEL 216.3 with CODE (809) model year 2009
MODEL 221.0 /1 (except 221.095 /195) as of 2.6.08
MODEL 221.0 /1 with CODE (809) model year 2009

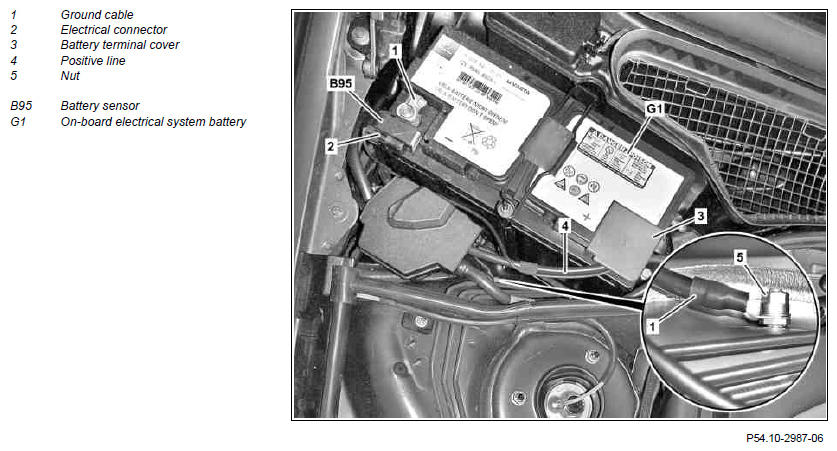

Fig 1: Identifying On-Board Electrical System Battery, Sensor, Electrical Connector And Battery Terminal Cover
| Remove/install | |||
| 1 | Disconnect ground line (1) from the on-board electrical system battery (G1) | AR54.10-P-0003SX | |
| 2 | Disconnect electrical connector (2) from battery sensor (B95) | ||
| 3 | Remove battery terminal cover (3) | ||
| 4 | Disconnect positive line (4) from on-board electrical system battery (G1) | ||
| 5 | Unscrew nut (5) | ||
| *BA54.10-P-1028-01C | |||
| 6 | Remove ground line (1) with battery sensor (B95) | ||
| 7 | Install in the reverse order |
BATTERY
| Number | Designation | Model 216 | Model 221 | ||
|---|---|---|---|---|---|
| BA54.10-P-1028-01C | Bolt/nut, ground line of battery to body | M8 | Nm | 16 | 16 |
