Remove/install additional fan for instrument cluster/COMAND display - AR54.30-P-6000SX

MODEL 216.3, 221.0 /1

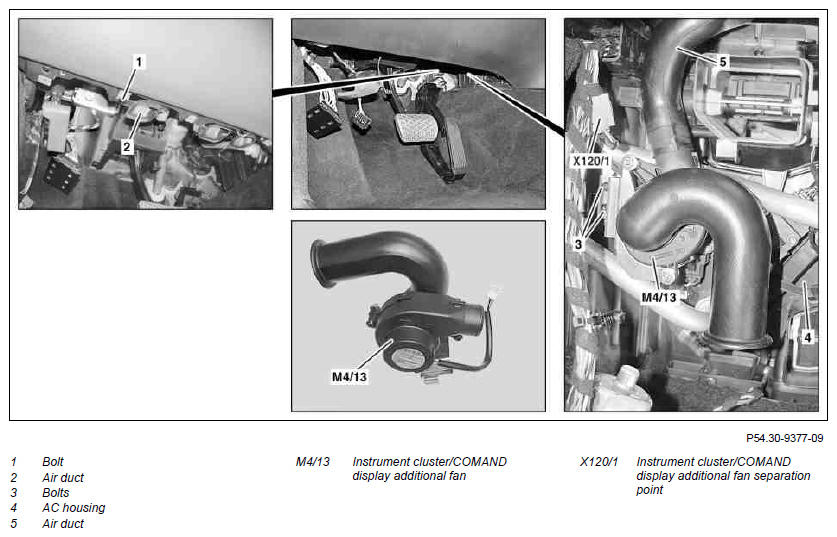

Fig 1: Identifying Instrument Cluster/COMAND Display Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover below instrument panel on left		AR68.10-P-1500SX
2	Unscrew bolt (1) and remove air duct (2)
3	Remove bolts (3)
4	Guide instrument cluster/COMAND display additional fan (M4/13) upwards out of the support on the air conditioner housing (4) and put down in the footwell	Installation  : Counterhold air duct (5) and insert instrument cluster/COMAND display additional fan (M4/13) in the air duct (5).
5	Detach instrument cluster/COMAND display additional fan separation point (X120/1)
6	Install in the reverse order
