Remove/install additional battery - AR54.10-P-0007SXS

MODEL 216, 221

Shown on model 216

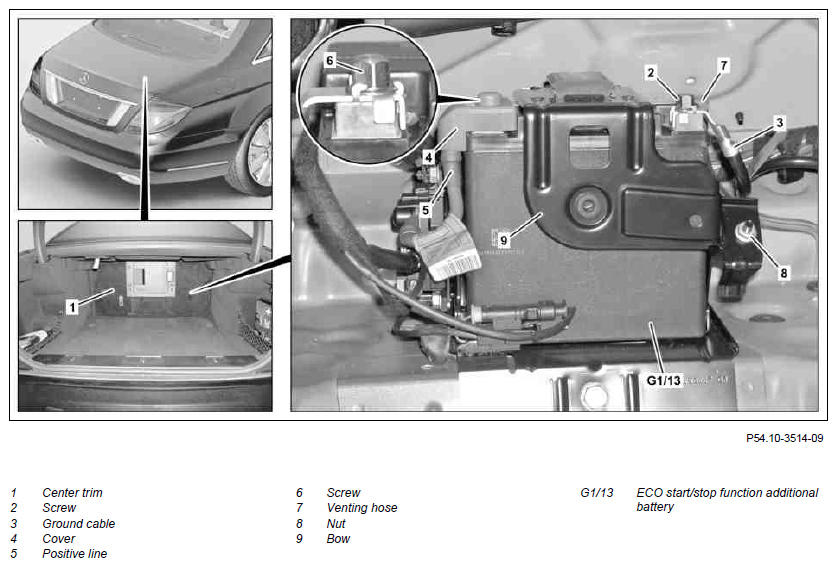

Fig 1: Identifying Additional Battery Related Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
	Notes on AGM battery		AH54.10-P-0002-01A
1	Switch off all electrical consumers, switch off ignition and remove transmitter key from EIS [EZS] control unit	All the electrical consumers must be switched off, otherwise they may be damaged when unclipping and clipping on the ground line (3).
2	Remove center paneling (1) in trunk		AR68.30-P-4600SX
3	Remove bolt (2) and detach ground line (3) from additional battery for ECO start/stop function (G1/13)		*BA54.10-P-1029-01C
4	Remove cover (4) of positive line (5)
5	Using diode test lamp, check on-board electrical system for voltage between positive line (5) of ECO start/stop function additional battery (G1/13) and a suitable ground point	If the diode test lamp lights up, the on-board electrical system is still active because of a defect in the electrical system. In this case the ground line of the battery (on-board electrical system battery) should be disconnected. See: ↓
		Disconnect/connect battery ground line Cover positive line (5), there is a risk of short circuit! After this the electrical system is to be repaired upon completion of the work carried out.	AR54.10-P-0003SX
6	Unscrew bolt (6) and remove positive line (5)		*BA54.10-P-1029-01C
7	Unscrew nut (8) of bracket (9)
8	Swivel bracket (9) upwards
9	Remove additional battery for ECO start/stop function (G1/13) from battery holder
10	Install in the reverse order

BATTERY

Number	Designation			Model 216
BA54.10-P-1029-01C	Bolt, battery cable to battery terminal on additional battery	M6	Nm	5
