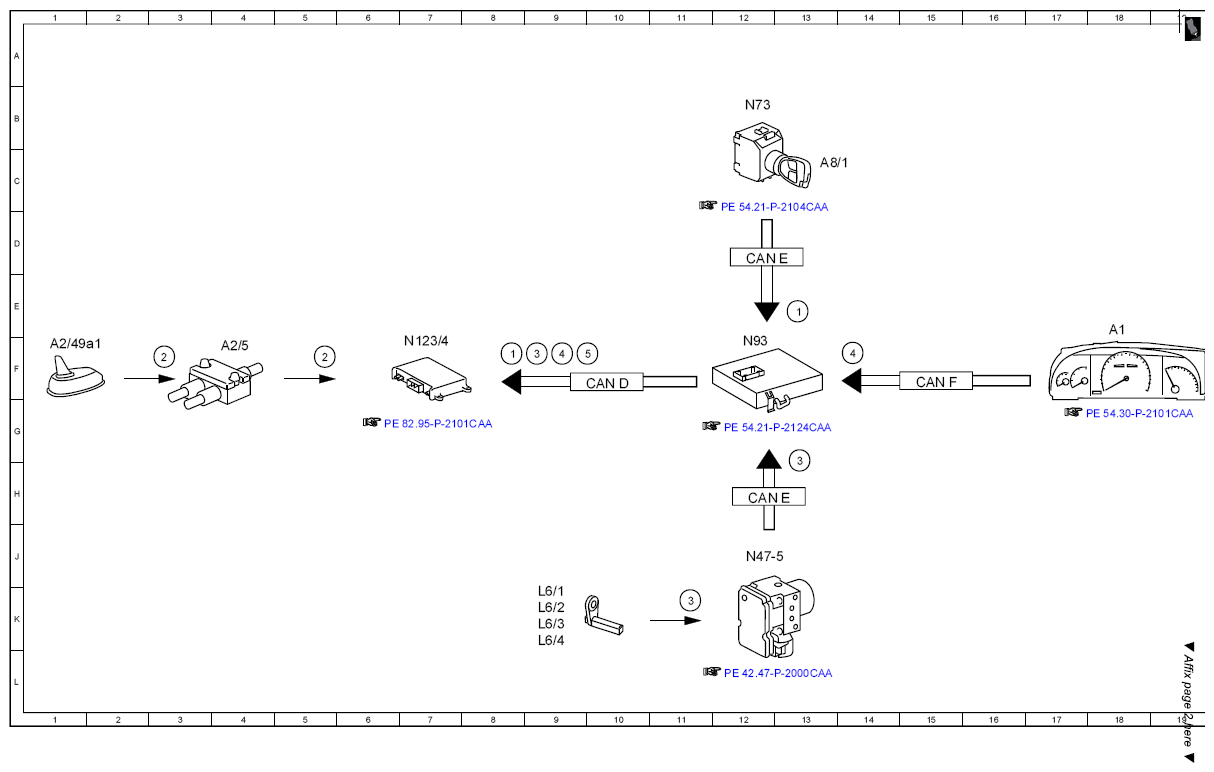

| 1 |
Circuit 15R/circuit 15, status ON |
13E |
| 1 |
Circuit 15R/circuit 15, status ON |
8F |
| 2 |
GPS, signal |
6F |
| 2 |
GPS, signal |
3F |
| 3 |
Wheel speed, signal |
9F |
| 3 |
Wheel speed, signal |
13H |
| 3 |
Wheel speed, signal |
11K |
| 4 |
Travel distance, signal |
9F |
| 4 |
Travel distance, signal |
14F |
| 5 |
Direction of travel, signal |
10F |
| A1 |
Instrument cluster |
18F |
| A2/49a1 |
Telephone antenna |
1F |
| A2/5 |
Antenna splitter |
4F |
| A8/1 |
Transmitter key |
13B |
| CAN D |
Diagnostic CAN |
10F |
| CAN E |
Chassis CAN |
12D |
| CAN E |
Chassis CAN |
12H |
| CAN F |
Central CAN |
15F |
| L6/1 |
Left front RPM sensor |
9J |
| L6/2 |
Right front RPM sensor |
9K |
| L6/3 |
Left rear RPM sensor |
9K |
| L6/4 |
right rear RPM sensor |
9K |
| N123/4 |
Emergency call system control unit |
7F |
| N47-5 |
ESP control unit |
12J |
| N73 |
EIS [EZS] control unit |
12B |
| N93 |
Central gateway control unit |
12E |
