| 1 |
Multifunction steering wheel button group, signal |
7G |
| 1 |
Multifunction steering wheel button group, signal |
4J |
| 1 |
Multifunction steering wheel button group, signal |
10E |
| 2 |
Volume display, actuation |
13D |
| 3 |
Speaker, actuation |
15F |
| 3 |
Speaker, actuation |
19E |
| 3 |
Speaker, actuation |
21H |
| 3 |
Speaker, actuation |
21D |
| 4 |
Circuit 15R/circuit 15, status ON |
6D |
| 4 |
Circuit 15R/circuit 15, status ON |
9E |
| 5 |
DAB/L-band antenna, signal |
17D |
| 6 |
|
12G |
| 7 |
Switch-on request, signal |
11D |
| 8 |
DAB band III, signal |
16D |
| 9 |
Audio, signal |
13E |
| A2/12 |
Rear window antenna amplifier module |
15B |
| A2/49 |
Telephone and GPS antenna |
17B |
| A40/10 |
SPLITVIEW display |
13A |
| A40/3 |

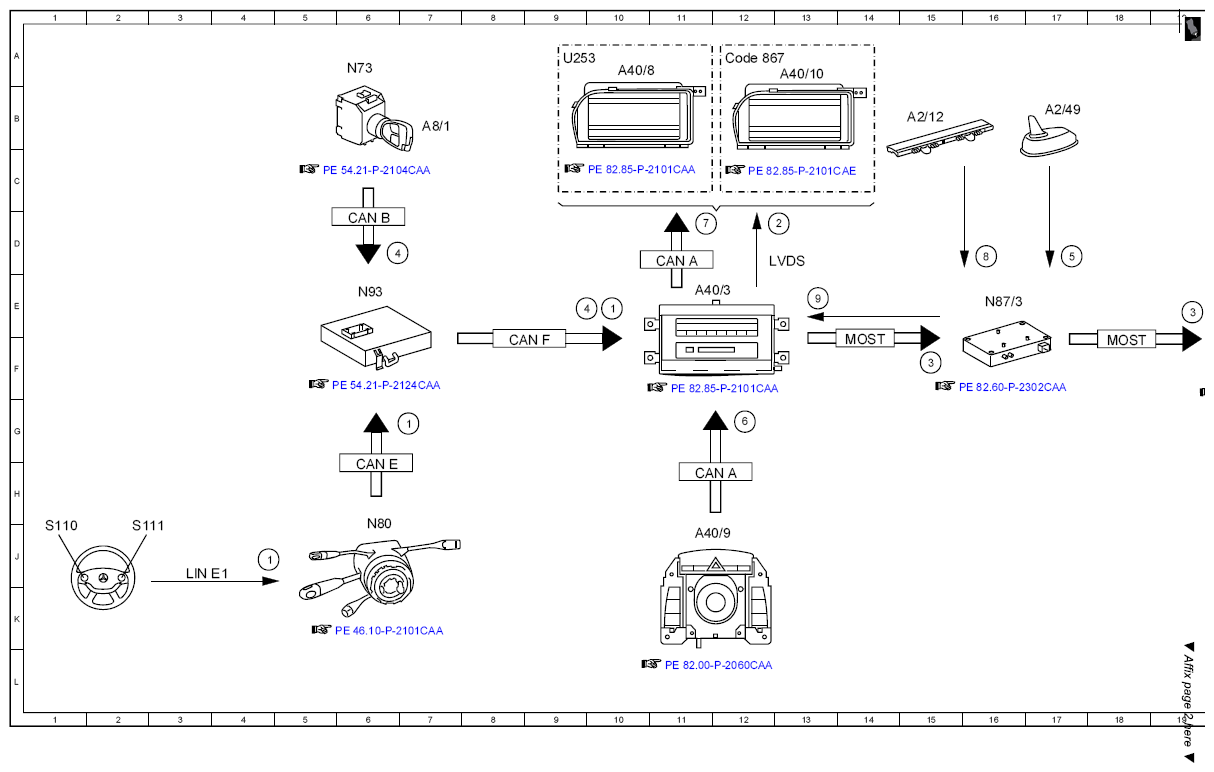

COMAND control unit |
11E |
| A40/8 |
COMAND display |
10A |
| A40/9 |
Front central operating unit |
11J |
| A8/1 |
Transmitter key |
7B |
| CAN A |
Telematics CAN |
11D |
| CAN A |
Telematics CAN |
12H |
| CAN B |
Interior CAN |
6D |
| CAN E |
Chassis CAN |
6G |
| CAN F |
Central CAN |
9E |
| Code 810 |
Sound system |
20H |
| Code 867 |
SPLITVIEW |
12A |
| H4/1 |
Left door speaker group |
21B |
| H4/17 |
Bass module speaker |
21C |
| H4/17 |
Bass module speaker |
21J |
| H4/2 |
Right door speaker group |
21B |
| H4/27 |
Center cockpit speaker (centerfill) |
21C |
| H4/27 |
Center cockpit speaker (centerfill) |
21J |
| H4/3 |
Left door rear speaker |
21B |
| H4/3 |
Left door rear speaker |
21J |
| H4/4 |
Right door rear speaker |
21B |
| H4/4 |
Right door rear speaker |
21J |
| H4/54 |
Left rear surround speaker |
21K |
| H4/57 |
Right rear surround speaker |
21K |
| H4/68 |
Left door Sound tweeter |
21K |
| H4/69 |
Right door Sound tweeter |
21K |
| H4/72 |
Left door Sound woofer and midrange speaker group |
21L |
| H4/73 |
Right door Sound woofer and midrange speaker group |
21L |
| LIN E1 |
Steering LIN |
3J |
| LVDS |
Low voltage differential signal |
13D |
| MOST |
Media Oriented System Transport |
14E |
| MOST |
Media Oriented System Transport |
18E |
| N73 |
EIS [EZS] control unit |
6A |
| N80 |
Steering column module |
6J |
| N87/3 |
Digital Audio Broadcasting control unit |
16E |
| N93 |
Central gateway control unit |
6E |
| N93/1 |

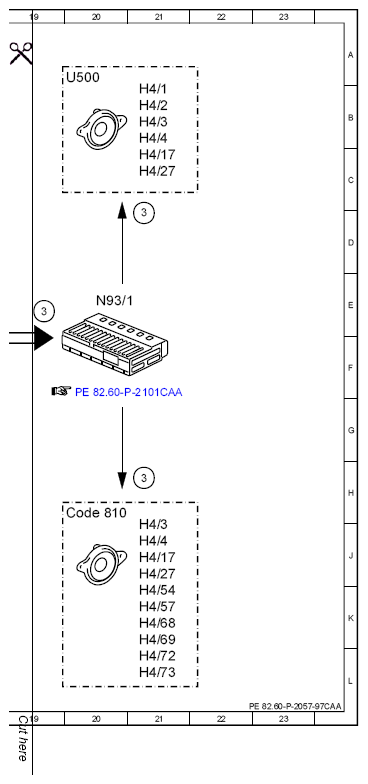

Audio tuner control unit |
20E |
| S110 |
Left multifunction steering wheel button group |
1J |
| S111 |
Right multifunction steering wheel button group |
2J |
| U253 |
Not valid for SPLITVIEW display |
9A |
| U500 |
Not valid for Sound System |
20A |
