Release fitting sleeves on flex disks - AR41.10-P-0050-09SX

Drift for loosening fitting sleeves in flex disks.

WF58.50-P-4110-01A

Propeller shaft installed

1. 1.1 Using drift, loosen fitting sleeves of flex disks from flange of transmission or rear axle center assembly.
   Fig 1: Loosening Fitting Sleeves Of Flex Disks From Flange Of Transmission Using Drift (Propeller Shaft Installed)

   Courtesy of MERCEDES-BENZ USA
2. Propeller shaft removed

   1.2 Loosen fitting sleeves of flex disks from propeller shaft using drift.

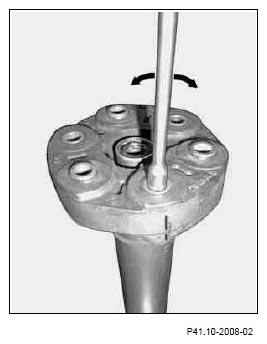

Fig 2: Loosening Fitting Sleeves Of Flex Disks From Flange Of Transmission Using Drift (Propeller Shaft Removed)

Courtesy of MERCEDES-BENZ USA
