Seam sealing following repair, rear end damage - AR97.10-P-4000-02SX

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-01A	White sealing compound, 310 ml, DBL 6069.20	A 001 989 63 20
BR00.45-Z-1041-01A	Seam sealant, sprayable 310 ml	A 002 989 84 20

Seal spot welds and rivets in repaired area with seam sealant material.

Insert plastic plugs and rubber grommets with sealing compound.

Keep sealant out of threads on weld nuts and threaded bolts by masking or covering with cardboard sleeves. Also keep drain openings and contact surfaces for axle attachments, windows and detachable parts free of sealant.

It is necessary to seal accessible spot weld flanges on both sides. If accessible from one side, only seal corresponding surface. Observe standard seals!

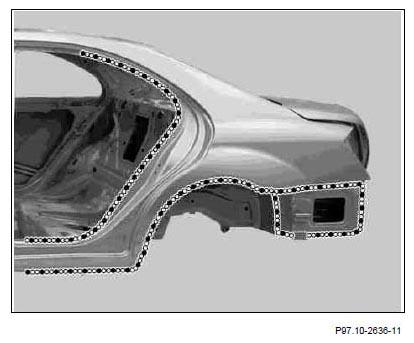

Area of entire rear fender, shown on left side of vehicle on model 221

Fig 1: Identifying Rear Fender Seam Sealing Area (Shown On Left Side Of Vehicle On Model 221)

Courtesy of MERCEDES-BENZ USA

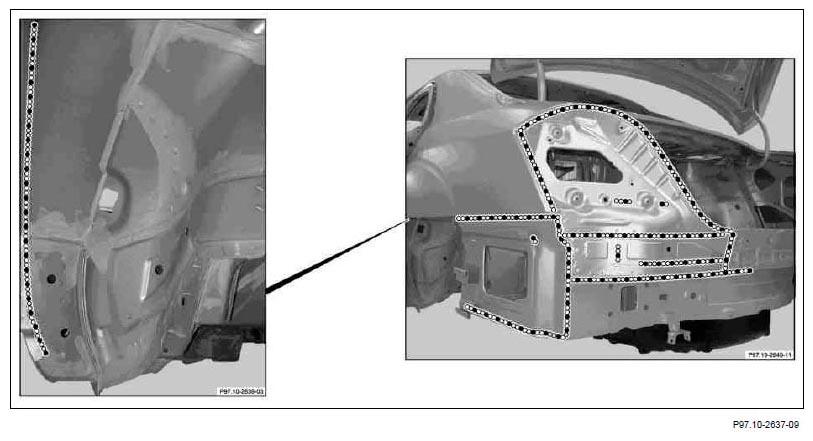

Area of rear fender, side paneling below bumper and rear lamp cutout, shown on left side of vehicle on model 221

Fig 2: Identifying Rear Fender, Side Paneling Below Bumper And Rear Lamp Cutout Seam Sealing Area (Shown On Model 221)

Courtesy of MERCEDES-BENZ USA

Complete rear end and bottom, shown on model 221

Fig 3: Identifying Complete Rear End And Bottom (Shown On Model 221)

Courtesy of MERCEDES-BENZ USA

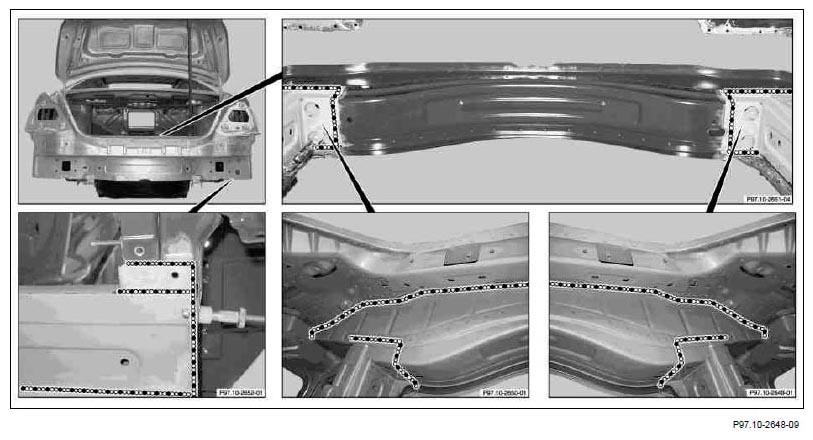

Area of top and bottom inner rear crossmember, shown on left side of vehicle on model 221

Fig 4: Identifying Top And Bottom Inner Rear Crossmember (Shown On Model 221)

Courtesy of MERCEDES-BENZ USA

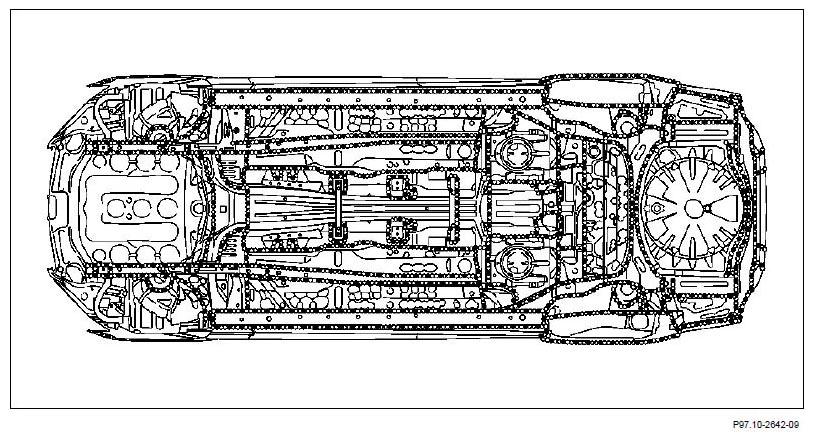

Area of entire underbody, shown on model 221

Fig 5: Identifying Underbody Seam Sealing Area (Shown On Model 221)

Courtesy of MERCEDES-BENZ USA
