Cavity preservation following repair work - AR97.20-P-1500SC

MODEL 216

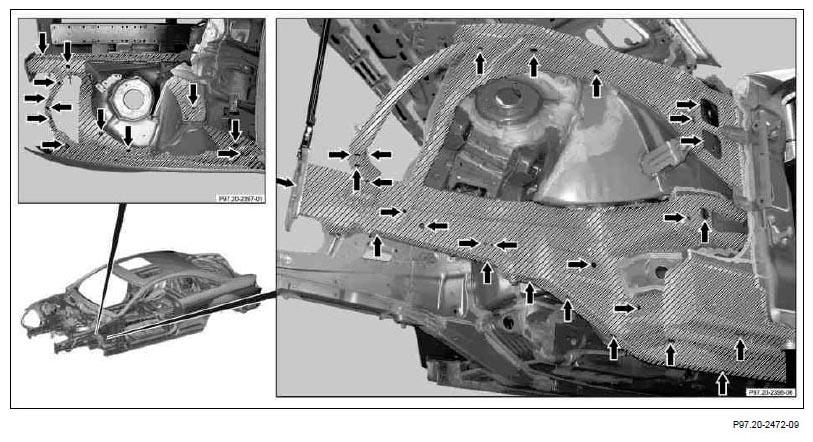

Wheelhouse with complete front longitudinal member

Fig 1: Identifying Wheelhouse With Complete Front Longitudinal Member Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

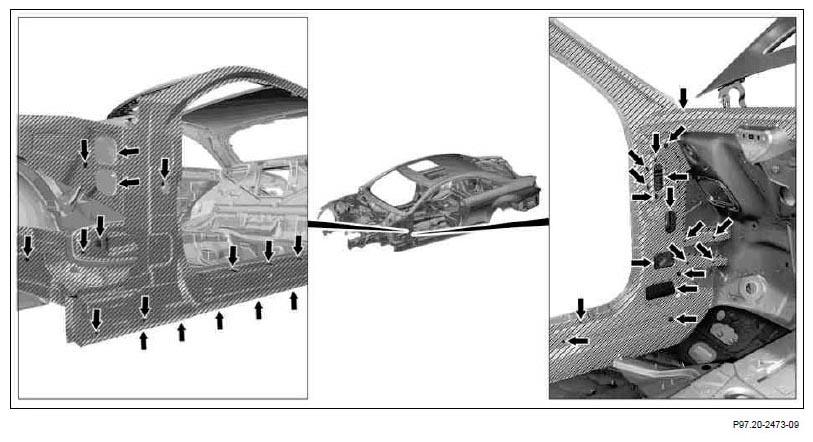

A-pillar on longitudinal member and inner and outer connection element

Fig 2: Identifying A-Pillar On Longitudinal Member And Inner And Outer Connection Element Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

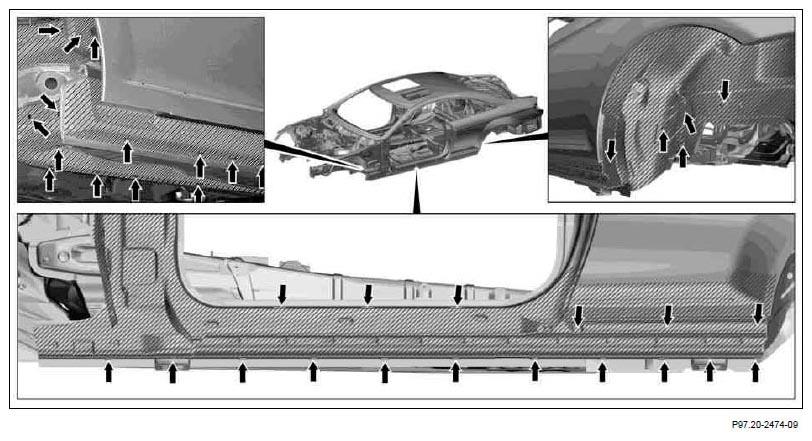

Side longitudinal member

Fig 3: Identifying Side Longitudinal Member Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

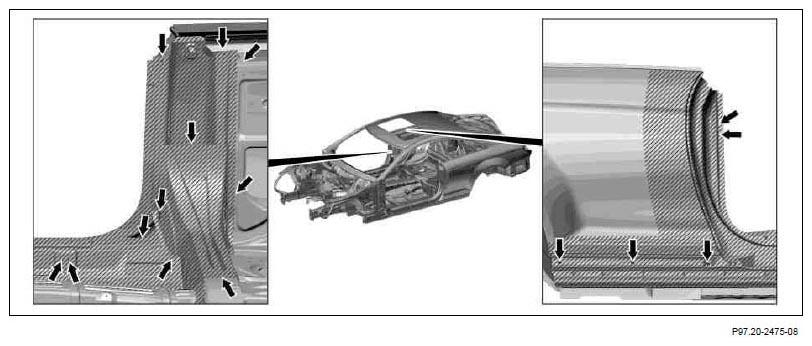

B-pillar on longitudinal member

Fig 4: Identifying B-Pillar On Longitudinal Member Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

Entire rear fender

Fig 5: Identifying Entire Rear Fender Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

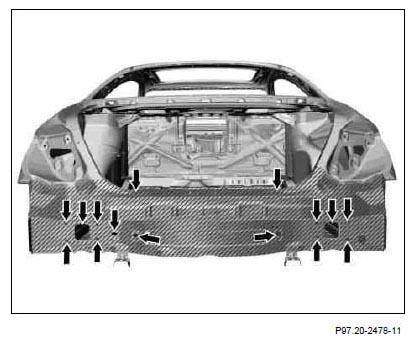

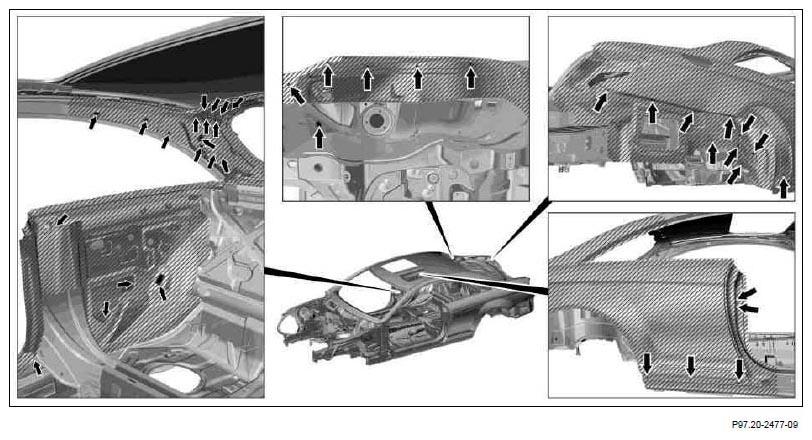

Complete rear end

Fig 6: Identifying Complete Rear End Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

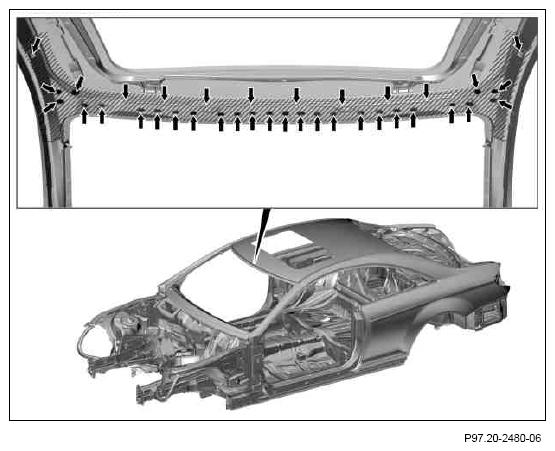

Front roof frame

Fig 7: Identifying Front Roof Frame Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

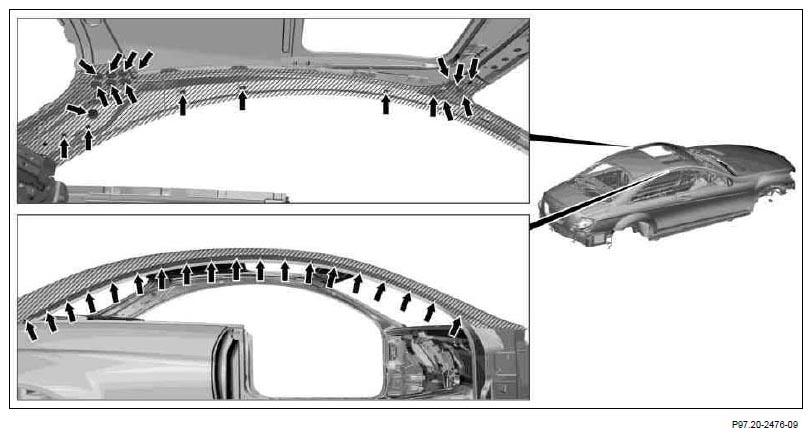

Side roof frame

Fig 8: Identifying Side Roof Frame Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

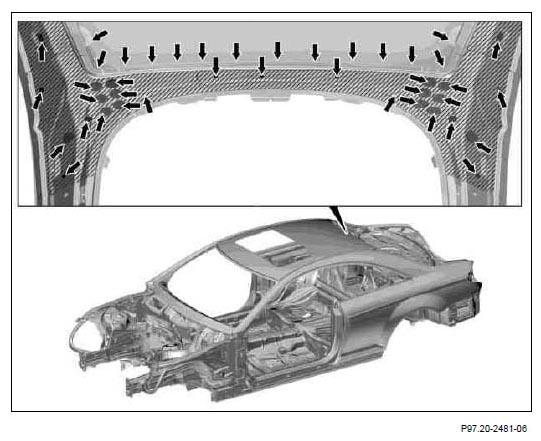

Rear roof frame

Fig 9: Identifying Rear Roof Frame Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

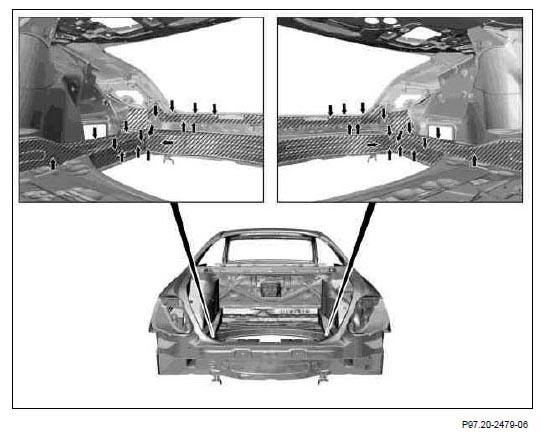

Rear longitudinal member

Fig 10: Identifying Rear Longitudinal Member Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

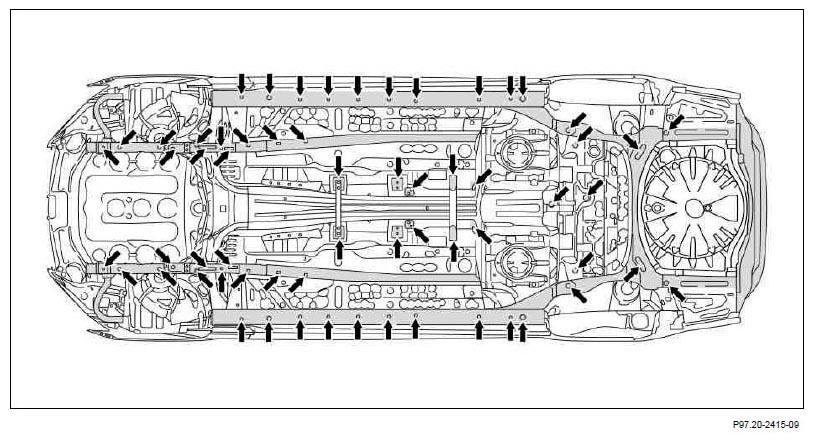

Complete underbody

Fig 11: Identifying Complete Underbody Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

	Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when handling anticorrosion agents.	Never spray anticorrosion agents on flames or glowing hot objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
	Notes on cavity preservation		AH97.20-P-0001-01B
1	Perform repair preservation twice in sequence, in shaded areas through vehicle openings (arrows), after a flash-off time of 5 minutes.	Apply cavity sealant from inside in shaded areas following sealing and paintwork, however, before performing assembly work. The spraying hose should be stiff and the nozzles should spray at angle to the front and rear. The cavities should be dry. Insert spray hoses as far as possible into hollow cavities. Spray while inserting and pulling out slowly. The processing temperature should not be less than 15 °C. Additional preservation measures may be required depending on the repair area deviating from the standard cavity preservation illustrated.
	Processing instructions for cavity preservation agent		AP97.20-P-0640-01SX
	Processing instructions for cavity preservation agent	MB cavity wax preservation, 1 l	*BR00.45-Z-1003-05A
2	Remove cavity sealant from drain holes

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity preservation, solvent-free (1 l container)	A 000 986 72 70 05
