| 1 |
Circuit 15, status |
6D |
| 1 |
Circuit 15, status |
18F |
| 2 |
Parking brake switch, status |
21F |
| 3 |
Emergency stop, signal |
8E |
| 3 |
Emergency stop, signal |
20C |
| 4 |
Wheel speed, signal |
8D |
| 4 |
Wheel speed, signal |
18F |
| 4 |
Wheel speed, signal |
19A |
| 5 |
Vehicle speed, signal |
5E |
| 5 |
Vehicle speed, signal |
17F |
| 6 |
Accelerator pedal sensor, signal |
16H |
| 6 |
Accelerator pedal sensor, signal |
17F |
| 6 |
Accelerator pedal sensor, signal |
8F |
| 7 |
Gear range, status |
9F |
| 7 |
Gear range, status |
14H |
| 7 |
Gear range, status |
18F |
| 8 |
ESP switch, status |
8D |
| 8 |
ESP switch, status |
18F |
| 8 |
ESP switch, status |
13B |
| 9 |
Parking brake, status |
4D |
| 9 |
Parking brake, status |
6F |
| 9 |
Parking brake, status |
9E |
| 9 |
Parking brake, status |
3H |
| 9 |
Parking brake, status |
17E |
| 10 |
Door rotary tumbler switch, status |
7K |
| 10 |
Door rotary tumbler switch, status |
17E |
| 10 |
Door rotary tumbler switch, status |
7G |
| A1 |
Instrument cluster |
2D |
| A13 |
Electric parking brake control unit |
20F |
| A8/1 |
Transmitter key |
3B |
| A80 |
Intelligent servo module for DIRECT SELECT |
11K |
| A85s1 |
Left rotary tumbler switch |
2K |
| B37 |
Accelerator pedal sensor |
19K |
| CAN B |
Interior CAN |
4F |
| CAN B |
Interior CAN |
8B |
| CAN B |
Interior CAN |
5F |
| CAN C |
Drive train CAN |
12H |
| CAN E |
Chassis CAN |
5B |
| CAN E |
Chassis CAN |
13E |
| CAN E |
Chassis CAN |
13F |
| CAN E |
Chassis CAN |
19D |
| CAN F |
Central CAN |
4E |
| CAN G |
Front end CAN |
13E |
| CAN G |
Front end CAN |
17F |
| L6/1 |
Left front RPM sensor |
18A |
| L6/2 |
Right front RPM sensor |
18A |
| L6/3 |
Left rear RPM sensor |
18B |
| L6/4 |
right rear RPM sensor |
18B |

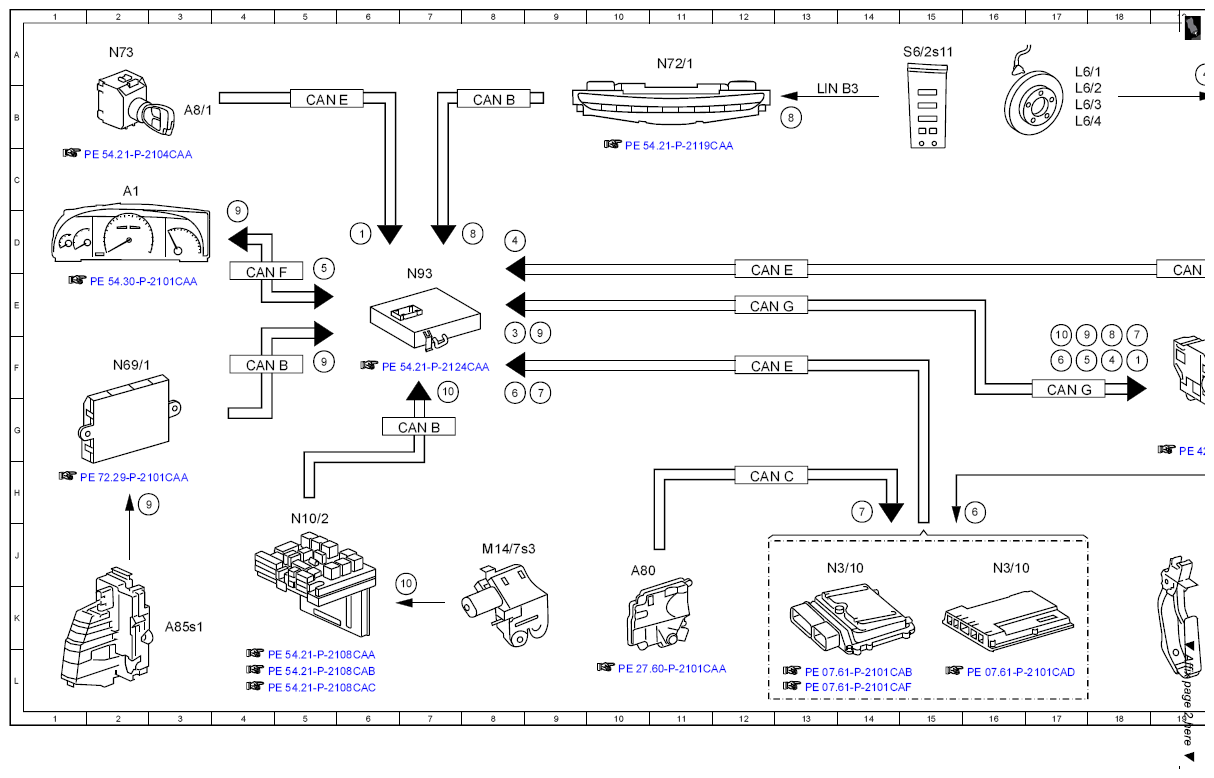

| LIN B3 |
OBF LIN |
14B |
| M14/7s3 |
Trunk lid rotary tumbler microswitch |
8K |
| N10/2 |
Rear SAM control unit with fuse and relay module |
5J |
| N3/10 |
ME-SFI [ME] control unit |
14K |
| N3/10 |
ME-SFI [ME] control unit |
16K |

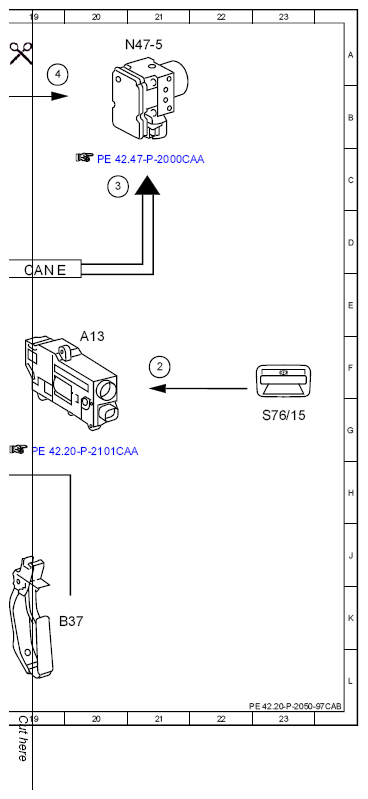

| N47-5 |
ESP control unit |
B21 |
| N69/1 |
Left door control unit |
2G |
| N72/1 |
Upper control panel control unit |
11B |
| N73 |
EIS [EZS] control unit |
2B |
| N93 |
Central gateway control unit |
7E |
| S6/2s11 |
ESP OFF switch |
15B |
| S76/15 |
Electric parking brake switch |
23F |
