Electric parking brake, location of components - GF42.20-P-0001-01LE

Illustrated on model 221.0

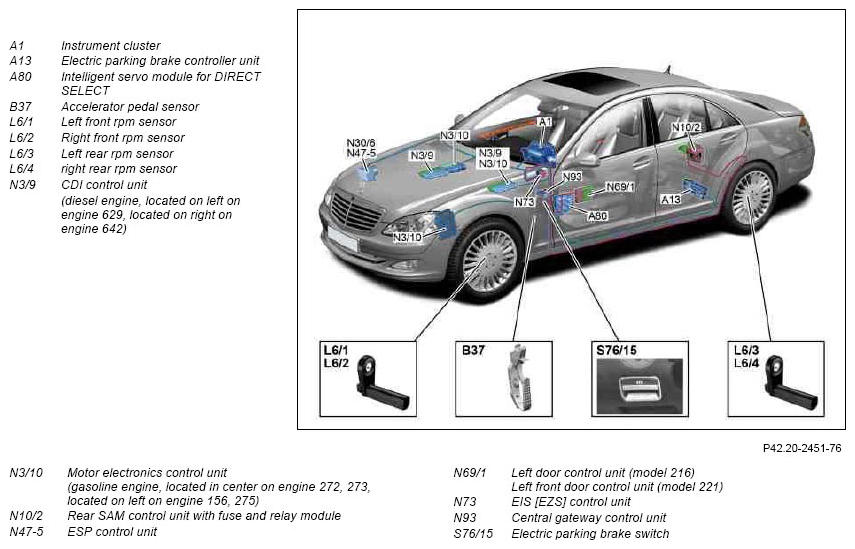

Fig 1: Identifying Electric Parking Brake Components Location (Illustrated On Model 221.0)
G07641349Courtesy of MERCEDES-BENZ USA
