Electric parking brake, block diagram - GF42.20-P-0001-02LE

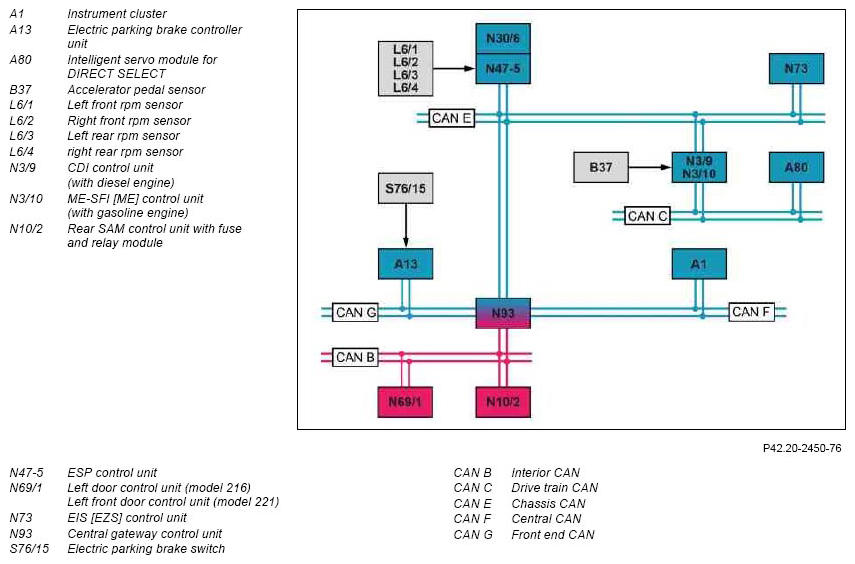

Fig 1: Electric Parking Brake Block Diagram

G07641351

Courtesy of MERCEDES-BENZ USA
