Adaptive Brake (ABR) block diagram - GF42.47-P-0001-03LEA

Shown up to 31.8.10

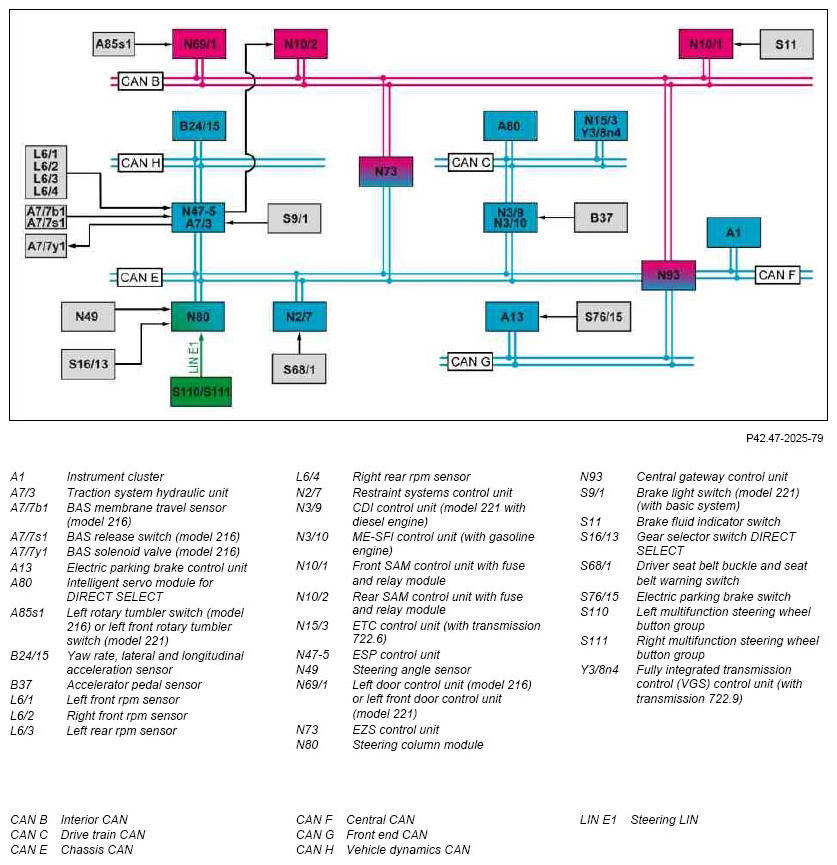

Fig 1: Adaptive Brake (ABR) Block Diagram - Shown Up To 31.8.10

Courtesy of MERCEDES-BENZ USA

Shown as of 1.9.10

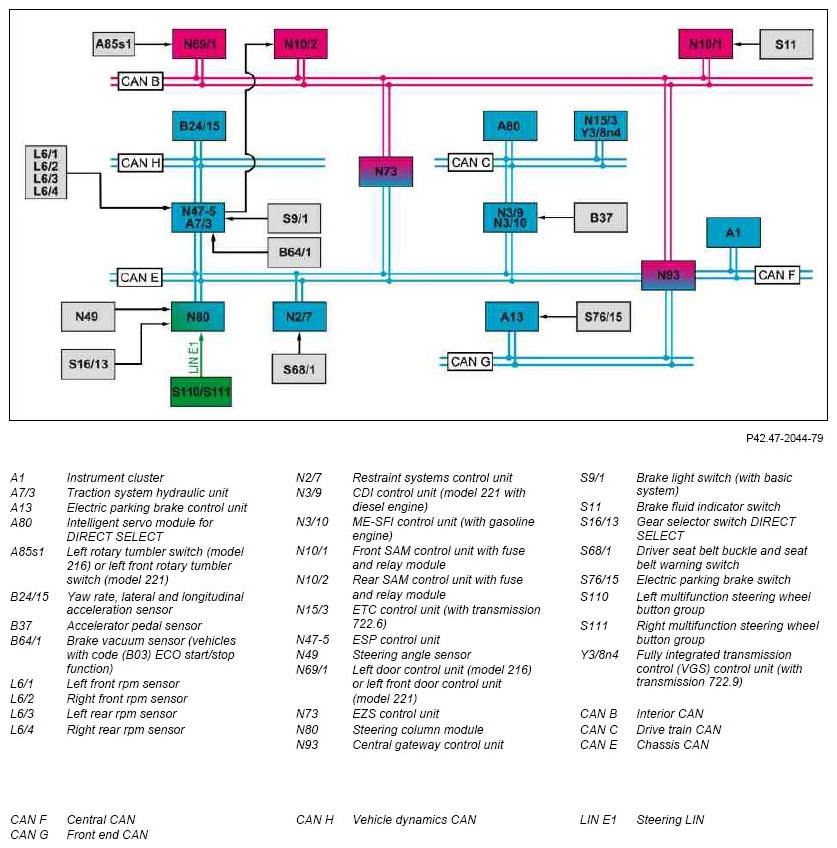

Fig 2: Adaptive Brake (ABR) Block Diagram - Shown As Of 1.9.10

Courtesy of MERCEDES-BENZ USA
