Adaptive Brake (ABR) block diagram - GF42.47-P-0001-03LE

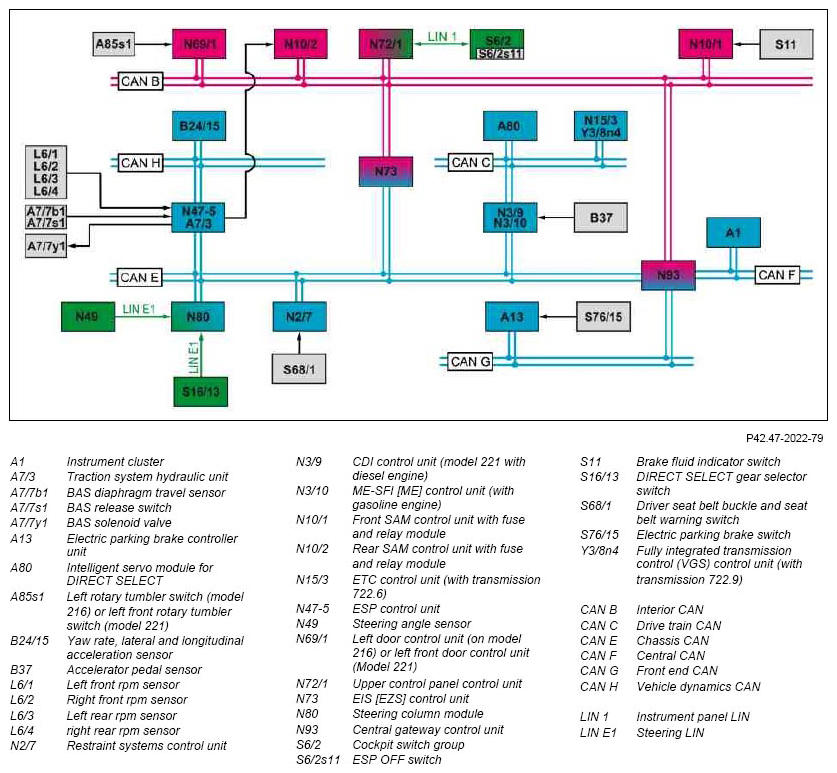

Fig 1: Adaptive Brake (ABR) Block Diagram

G07641380

Courtesy of MERCEDES-BENZ USA
