Heated rear window, block diagram - GF67.29-P-0003-03SX

15.03.07 The document has been updated to this date and will no longer be subject to revision.

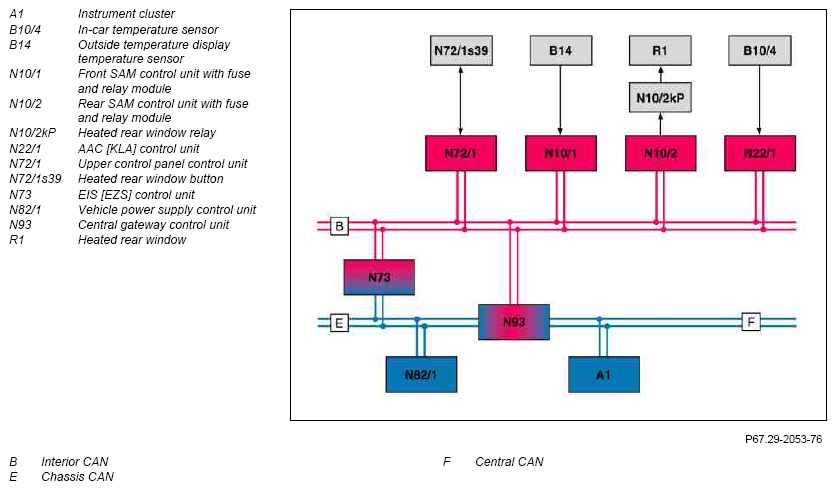

Fig 1: Heated Rear Window Block Diagram
G07635135Courtesy of MERCEDES-BENZ USA
