Power windows (PW), location of components - GF72.29-P-0003-01SC

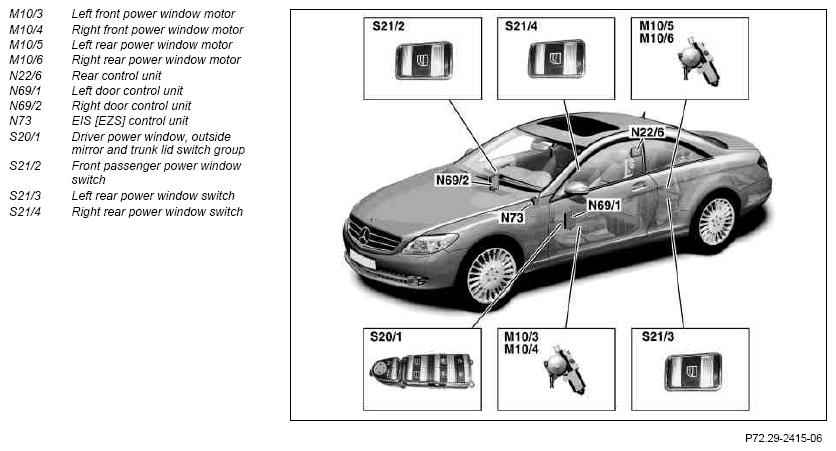

Fig 1: Identifying Power Windows Components Location

G07638673

Courtesy of MERCEDES-BENZ USA
