Doors & Windows -- Cl550 -- 216 Chassis
>>
Basic Knowledge
>>
Power windows (PW), location of components - GF72.29-P-0003-01LA
Power windows (PW), location of components - GF72.29-P-0003-01LA

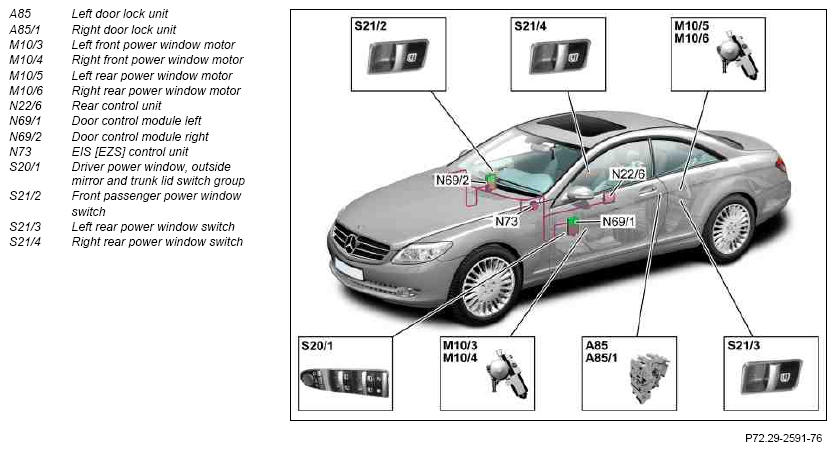

Fig 1: Identifying Power Windows Component Location
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
