Overview of system components for tilting/sliding roof (SR) - GF77.20-P-9994GR
MODEL 166 with CODE (414) Power glass tilting/sliding roof

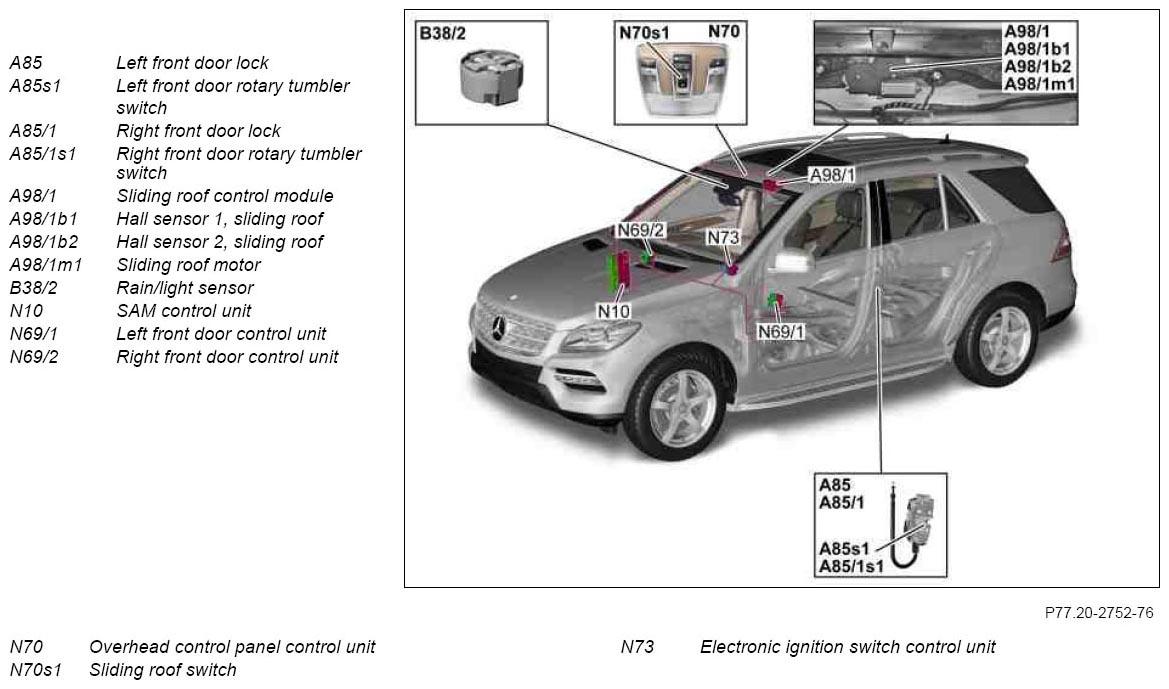

Shows model 166.0
| Sliding roof control module, component description | A98/1 | GF77.20-P-4108GR |
| SAM control unit, component description | N10 | GF54.21-P-4157GR |
| Left front door control unit, component description | N69/1 | GF72.29-P-6001GR |
| Right front door control unit, component description | N69/2 | GF72.29-P-6009GR |
| Overhead control panel control unit, component description | N70 | GF82.20-P-5216GR |
| Electronic ignition lock control unit, component description | N73 | GF80.57-P-6001GR |
| Table of contents for function description of tilting/sliding roof | see GF77.20-P-0999GR |
