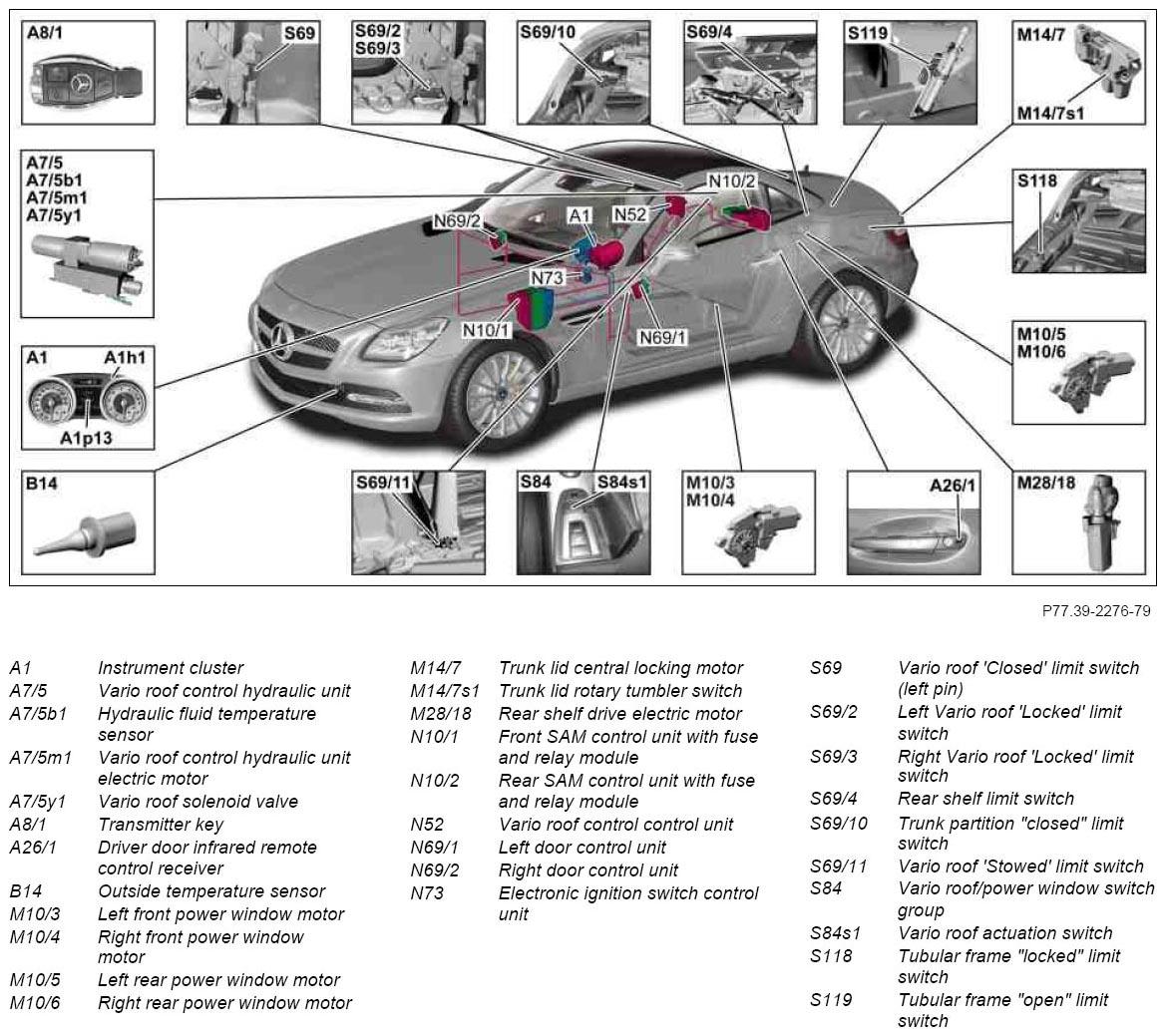

Overview of Vario roof system components (VR) - GF77.30-P-9996RD
MODEL 172.4
Vario roof (VD)

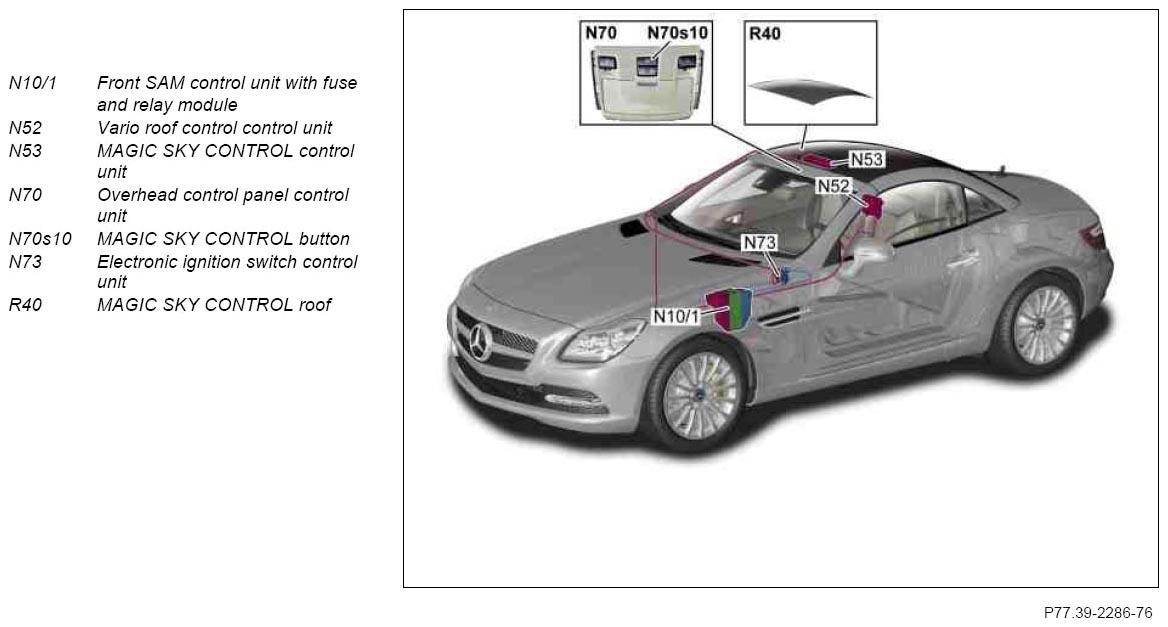

MAGIC SKY CONTROL (with code (412) vario roof in glass version)
| Component description for instrument cluster | A1 | GF54.30-P-6000RD |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070RD |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030RD |
| Vario roof control unit, component description | N52 | GF77.39-P-3210RD |
| MAGIC SKY CONTROL control unit, component description | N53 with code (412) Vario roof glass version |
GF77.39-P-3218RD |
| Left door control unit, component description | N69/1 | GF72.29-P-4143RD |
| Right door control unit, component description | N69/2 | GF72.29-P-4144RD |
| Overhead control panel control unit Component description | N70 | GF82.20-P-5216RD |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RD |
| Table of contents for function description of Vario roof (VR) | see GF77.30-P-0996RD |
