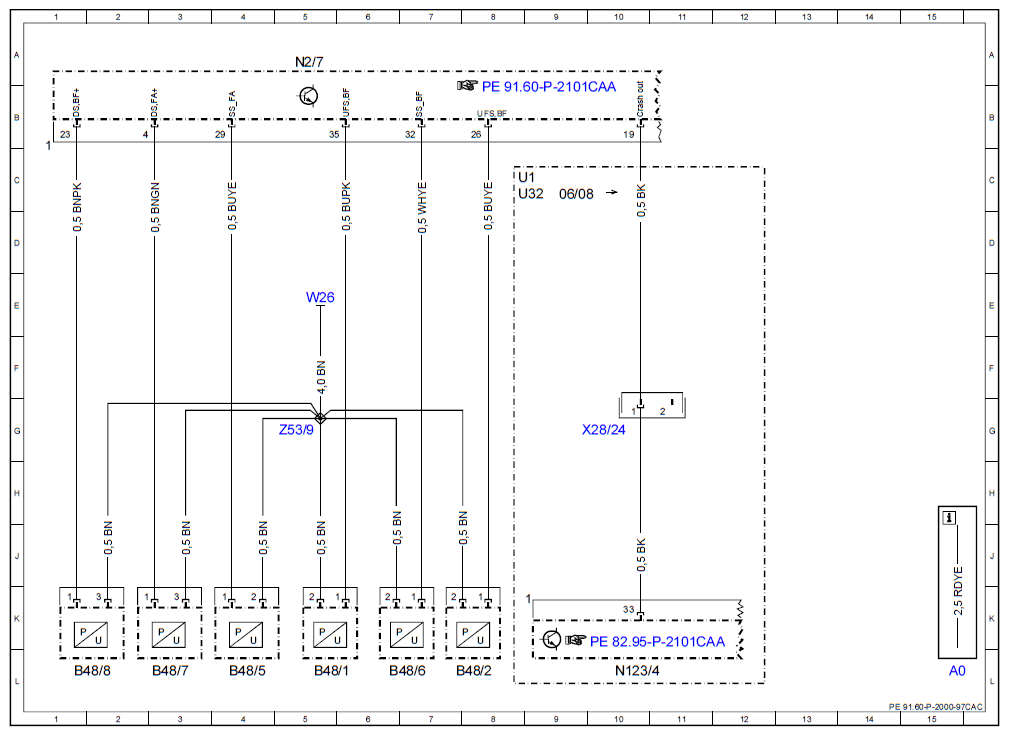

| A0 |
Color code key |
15L |
| B48/1 |
Driver-side frontal acceleration sensor |
5K |
| B48/2 |
Passenger-side frontal acceleration sensor |
8K |
| B48/5 |
Airbag system driver assist |
4L |
| B48/6 |
Airbag system front passenger assist |
7L |
| B48/7 |
Driver door pressure sensor |
3L |
| B48/8 |
Front passenger door pressure sensor |
2L |
| N123/4 |
Emergency call system control unit |
10L |
| N2/7 |
Restraint systems control unit |
5A |
| U1 |
Valid for USA |
8C |
| U32 |
Valid for Canada |
9C |
| W26 |
Ground (restraint systems control unit) |
5E |
| X28/24 |
Interior/telematics connector |
11G |
| Z53/9 |
Interior sleeve connector, airbag circuit 31 |
5G |
