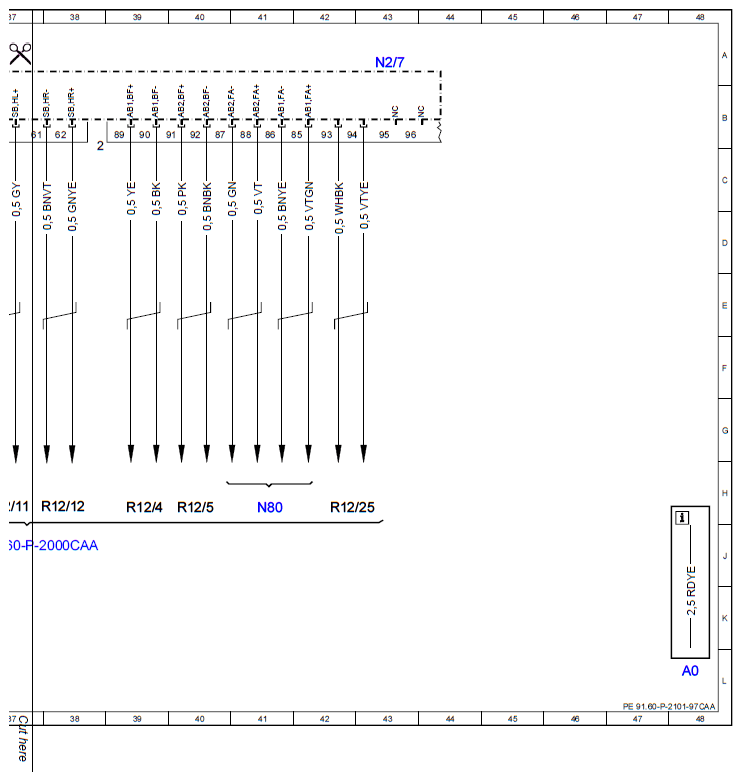

| A0 |
Color code key |
48L |

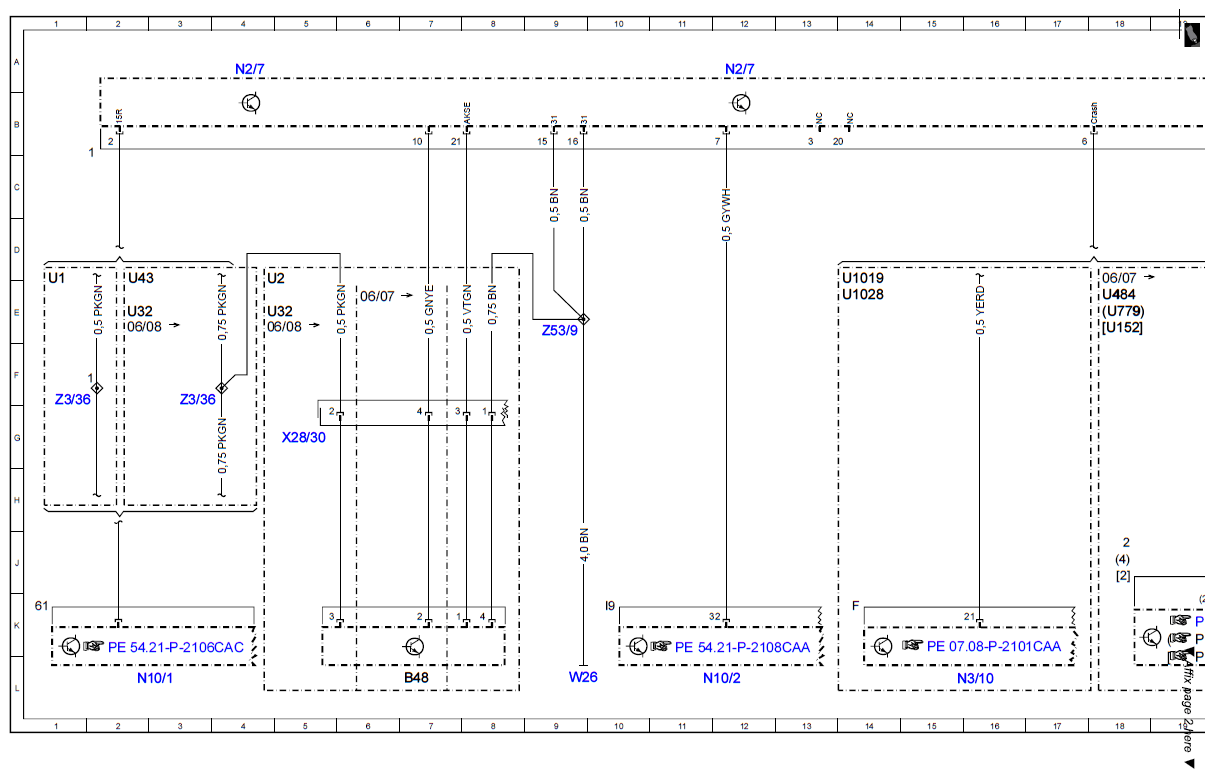

| B48 |
Front passenger seat occupied and child seat recognition sensor |
7L |

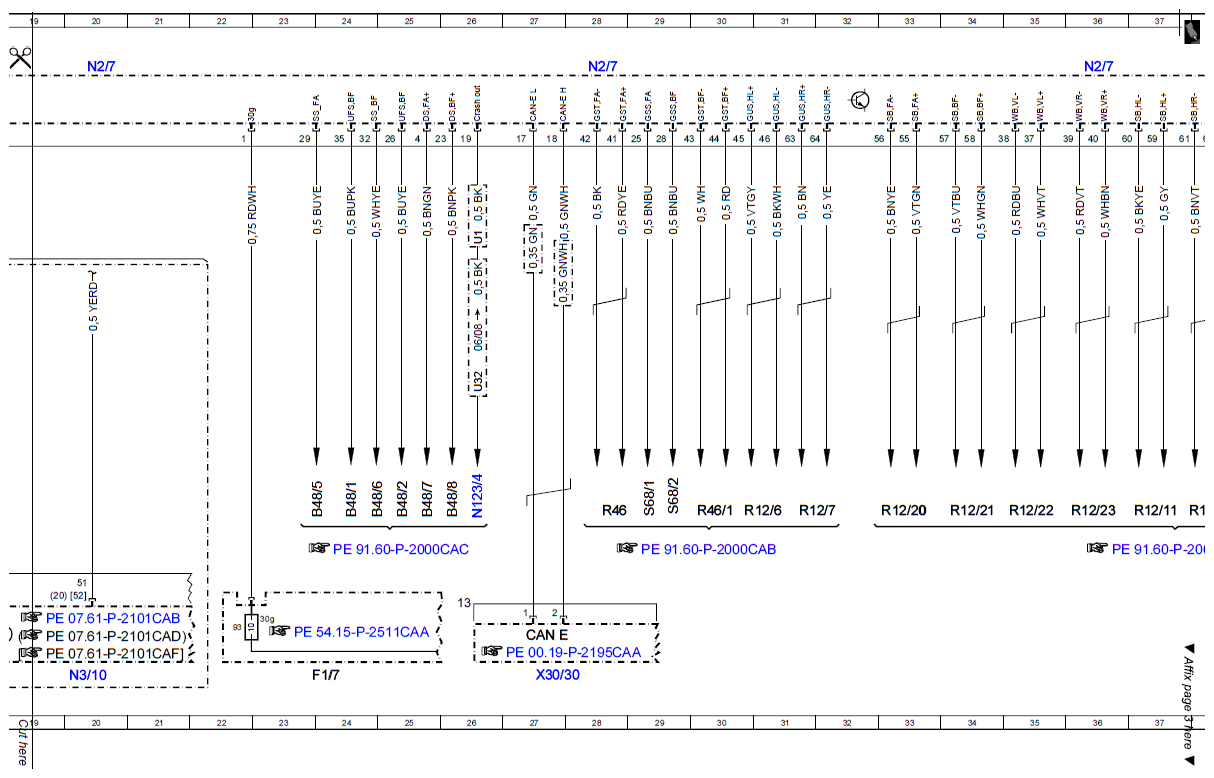

| B48/1 |
Driver-side frontal acceleration sensor |
24H |
| B48/2 |
Passenger-side frontal acceleration sensor |
25H |
| B48/5 |
Airbag system driver assist |
24H |
| B48/6 |
Airbag system front passenger assist |
25H |
| B48/7 |
Driver door pressure sensor |
25H |
| B48/8 |
Front passenger door pressure sensor |
26H |
| CAN E |
Chassis CAN |
27K |
| F1/7 |
Left instrument panel fuse box |
24L |
| F1/7f93 |
Fuse 93 |
22K |
| N10/1 |
Front SAM control unit with fuse and relay module |
2L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
12L |
| N123/4 |
Emergency call system control unit |
26H |
| N2/7 |
Restraint systems control unit |
4A |
| N2/7 |
Restraint systems control unit |
12A |
| N2/7 |
Restraint systems control unit |
20A |
| N2/7 |
Restraint systems control unit |
28A |
| N2/7 |
Restraint systems control unit |
36A |
| N2/7 |
Restraint systems control unit |
43A |
| N3/10 |
ME-SFI [ME] control unit |
16L |
| N3/10 |
ME-SFI [ME] control unit |
20L |
| N80 |
Steering column module |
41H |
| R12/11 |
Left rear sidebag squib |
37H |
| R12/12 |
Right rear sidebag squib |
37H |
| R12/20 |
Left front sidebag squib |
33H |
| R12/21 |
Right front sidebag squib |
34H |
| R12/22 |
Left rear windowbag squib |
35H |
| R12/23 |
Right rear windowbag squib |
36H |
| R12/25 |
Driver kneebag squib |
42H |
| R12/4 |
Front passenger airbag squib 1 |
39H |
| R12/5 |
Front passenger airbag squib 2 |
40H |
| R12/6 |
Left rear ETR squib |
31H |
| R12/7 |
Right rear ETR squib |
31H |
| R46 |
Driver buckle ETR squib |
28H |
| R46/1 |
Front passenger buckle ETR squib |
30H |
| S68/1 |
Driver seat belt buckle and seat belt warning switch |
29H |
| S68/2 |
Front passenger seat belt buckle and seat belt warning switch |
29H |
| U1 |
Valid for {{USA}} |
1E |
| U1 |
Valid for {{USA}} |
26D |
| U1019 |
Valid for engine 278 |
14E |
| U1028 |
Valid for engine 157 |
14E |
| U152 |
Valid for engine 156 |
18E |
| U2 |
Valid for all except{{USA}} |
4E |
| U32 |
Valid for {{Canada}} |
2E |
| U32 |
Valid for {{Canada}} |
4E |
| U32 |
Valid for {{Canada}} |
26F |
| U43 |
Valid for ECE |
2E |
| U484 |
Valid for M273 ME |
18E |
| U779 |
Valid for engine 275 |
18E |
| W26 |
Ground (restraint systems control unit) |
9L |
| X28/30 |
Passenger-side FFS [RBA]/seat airbag separation point |
5G |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
27L |
| Z3/36 |
ACSR [AKSE] circuit 15R connector sleeve |
1F |
| Z3/36 |
ACSR [AKSE] circuit 15R connector sleeve |
3F |
| Z53/9 |
Interior sleeve connector, airbag circuit 31 |
9E |
