Prepare headliner for installation - AR68.30-P-4305SC

MODEL 216.371

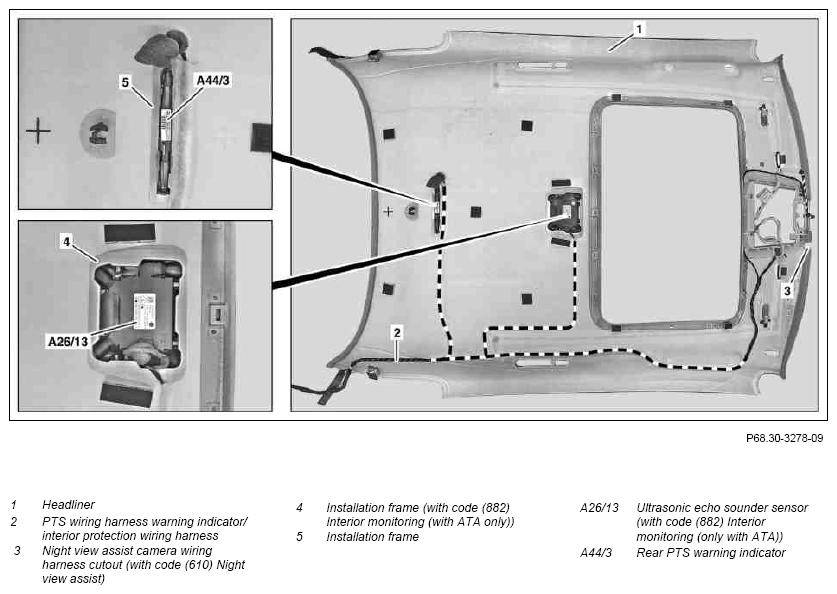

Fig 1: Identifying Headliner, PTS Wiring Harness Warning Indicator, Night View Assist Camera Wiring Harness Cutout, Installation Frame And Ultrasonic Echo Sensor

Courtesy of MERCEDES-BENZ USA

Shown with code (882) Interior monitoring (with ATA only) and code (610) Night view assist

	Removal
1	Remove headliner (1)		see AR68.30-P-4300SC
2	Remove rear PTS warning indicator (A44/3) from old headliner (1).
3.1	Remove ultrasonic echo sounder sensor (A26/13) from old headliner (1).	For code (882) Interior monitoring (with ATA [EDW] only)	see AR80.50-P-9831SX
	Preparation
4	Prepare new headliner (1) for installing rear PTS warning indicator (A44/3)	Replace installation frame (5). Body saw (electric/pneumatic)	see AR68.30-P-4300-04SX
5.1	Prepare new headliner (1) for installing ultrasonic echo sounder sensor (A26/13)	For code (882) Interior monitoring (with ATA [EDW] only) Replace installation frame (4). Body saw (electric/pneumatic)	see AR68.30-P-4300-05SX
6.1	Prepare new headliner (1) for installing night view assist camera	with code (610) Night view assist Body saw (electric/pneumatic)	see AR68.30-P-4300-16SX
7	Glue PTS warning indicator/interior protection wiring harness (2) onto new headliner (1).	Replace PTS warning indicator/interior protection wiring harness (2). Pay attention to routing of cables.	see AR68.30-P-4305-14SX
		Adhesive tape 4657, 50 mm	see *BR00.45-Z-1071-02A
	Install
8	Install rear PTS warning indicator (A44/3) into new headliner (1).
9.1	Install ultrasonic echo sounder sensor (A26/13) in new headliner (1).	For code (882) Interior monitoring (with ATA [EDW] only)	see AR80.50-P-9831SX
10	Install new headliner (1).		see AR68.30-P-4300SC
