Garage door opener, location of components - GF68.05-P-0001-01LE

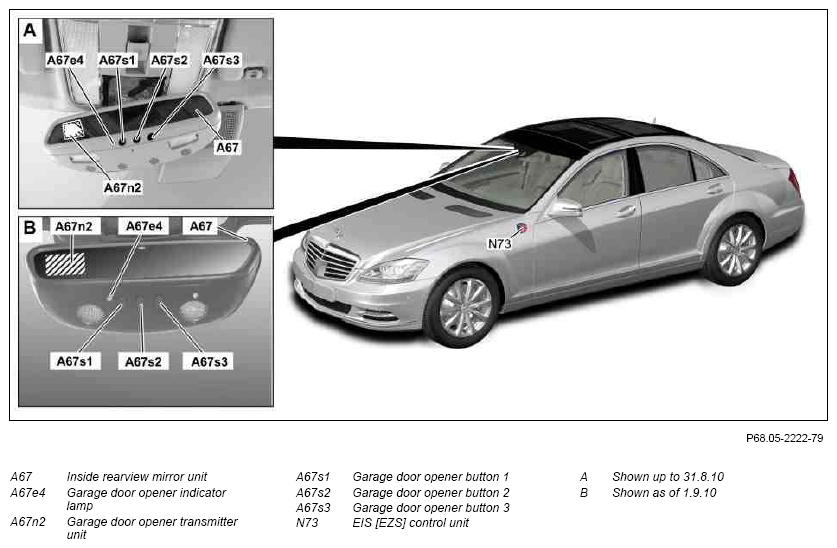

Fig 1: Identifying Garage Door Opener Component Location - Shown On Model 221.0

G07635231

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0
